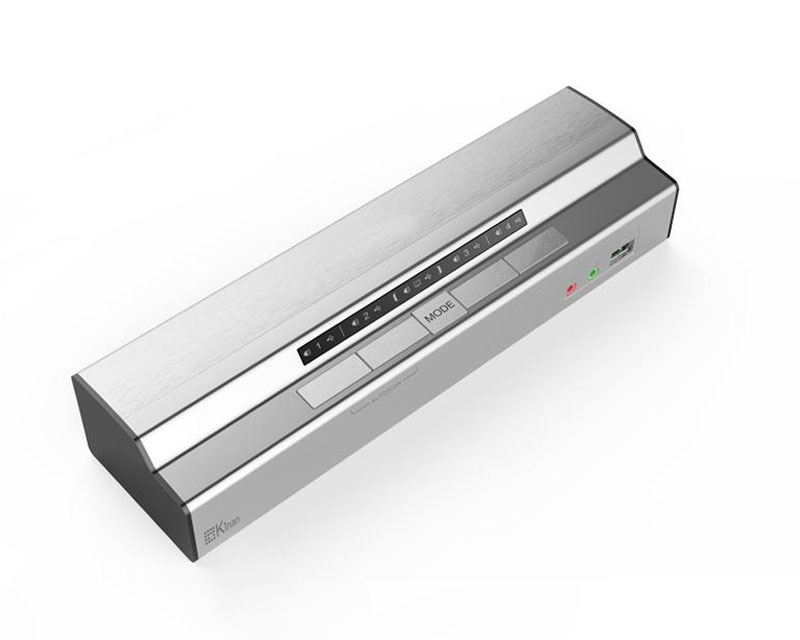

HD1204
4 Port QUAD Screen Multiviewer
Description
| Computer Connection | 4 |
| Port Selection | Pushbuttons, hotkey, IR remote control |
| Screen Display Mode | Full screen mode Quad screen mode PIP screen mode H screen mode Two screen mode |
| Connector | |
| Console Monitor | 1 * HDMI type A |
| Console Keyboard/Mouse | 2 * USB type A(black) |
| Console Mic | 2 * Min stereo port (pink) |
| Console Speaker | 2 * Min stereo port (green) |
| KVM Port Monitor | 4 * HDMI type A |
| KVM Port Keyboard/Mouse | 4 * USB type B(white) |
| KVM Port Mic | 4 * Min stereo port (pink) |
| KVM Port Speaker | 4 * Min stereo port (green) |
| Power supply | 1 * DC socket |
| USB2.0 port | 2 * USB type A(black) |
| Upgrade port | 1 * 3.5mm socket(black) |
| Switch | |
| Port selection | 5* pushbuttons |
| LEDs | |
| Audio | 5* (green) |
| KVM | 5* (orange) |
| USB | 5* (green) |
| I/R value | DC 12V |
| Video signal | 1080P(HDTV) / 1920*1200( DVI ) |
| Power consumption | 5W |
| Emulation | |
| Keyboard/Mouse | USB |
| Operating Temperature | 0-40℃ |
| Environment | |
| Storage Temperature | -20-60℃ |
| Humidity | 0-80%RH,Non-condensing |
| Physical Features | |
| Material | Metal, plastic |
| Weight | 0.6kg |
| Dimension | 264 mm *48.5 mm *71mm |
