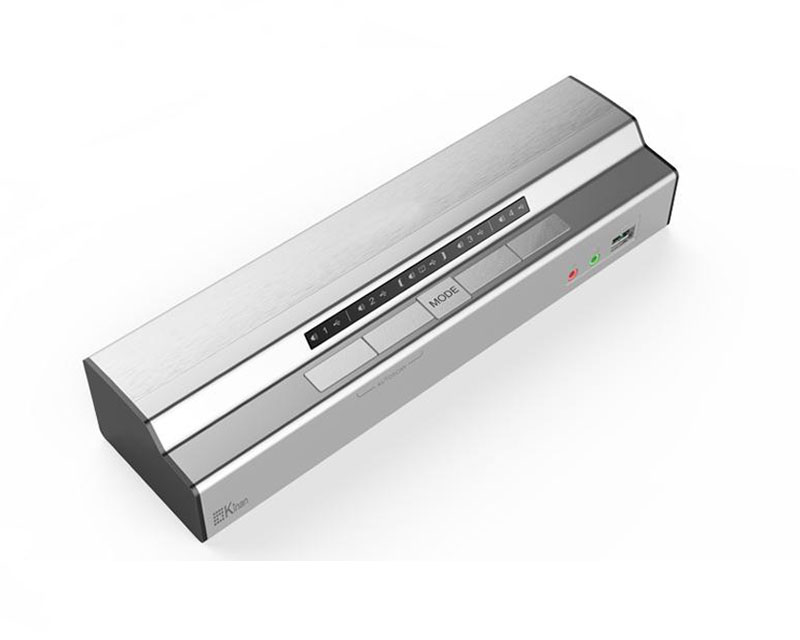

HD1104
4 Port HDMI KVM switch
Description
| Model | HD1104 | ||
| Computer Connections | 4 | ||
| Port Selection | Front panel pushbuttons, keyboard hotkey, infrared remote control | ||
| Connector | Console | Monitor | 1xHDMI type A |
| Keyboard | 1xUSB type A (Black) | ||
| Mouse | 1xUSB type A (Black) | ||
| Microphone | 2xMin stereo port (pink) | ||
| Speaker | 2xMin stereo port (green) | ||
| KVM port |
Monitor | 4xHDMI type A | |
| Keyboard/Mouse | 4xUSB type B (White) | ||
| Microphone | 4xMin stereo port (pink) | ||
| Speaker | 4xMin stereo port (green) | ||
| Power supply | 1xDC socket | ||
| USB2.0 port | 2xUSB type A (Black) | ||
| Upgrade port | 1x3.5mm socket (Black) | ||
| Switch | Port selection | 5xpushbuttons | |
| LEDs |
Audio | 5x(green) | |
| KVM | 5x(orange) | ||
| USB | 5x(green) | ||
| Input power | DC 12V | ||
| Video signal | 1080P (1920x1200) | ||
| Power consumption | 5W | ||
| Emulation | Keyboard/Mouse | USB | |
| Environment |
Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-50℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Physical Features |
Material | Metal, plastic | |
| Weight | 0.6kg | ||
| Dimension | 264 mmx8.5 mmx71mm | ||
