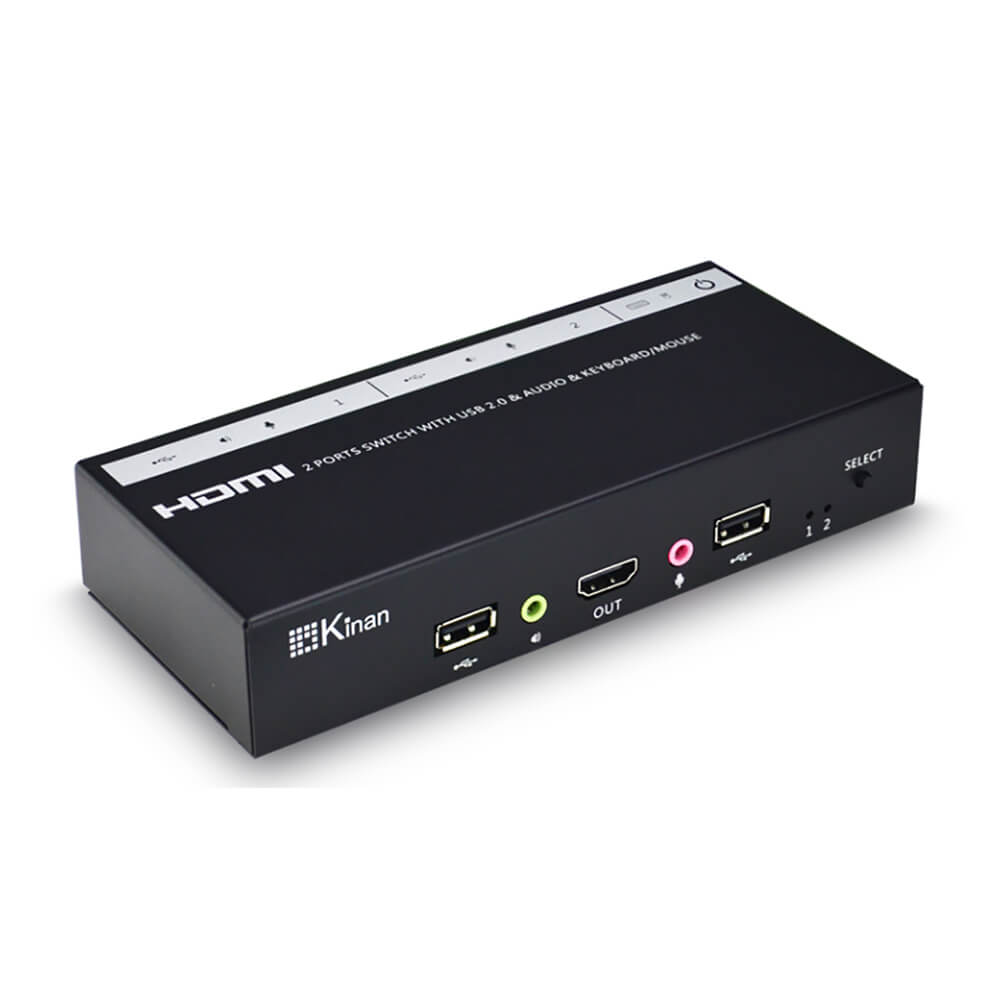

HD1102
2 Port HDMI KVM switch
Description
| Model | HD1102 | ||
| Computer Connection | 2 | ||
| Port Selection | Hotkey, button | ||
| Connectors | Console | Monitor | 1x HDMI Type A |
| Keyboard Mouse |
1x double layer USB type A | ||
| Mic | 1x Min stereo port (pink) | ||
| Speaker | 1x Min stereo port (green) | ||
| PC | Monitor | 2x HDMI Type A | |
| Keyboard Mouse |
2x USB type B | ||
| Mic | 2x Min stereo port (pink) | ||
| Speaker | 2x Min stereo port (green) | ||
| USB2.0 port | 2x USB type A | ||
| Power | 1x DC socket | ||
| Switch | Port Selection | 1x button | |
| LEDs | Selected | 2 (Blue) | |
| Resolution | 3840×2160 @ 60 Hz | ||
| Power Consumption | 2W | ||
| Power Input | 5V- 12V DC | ||
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60℃ | ||
| Humidity | 0~80% RH, non-condensing | ||
| Net Weight | 0.4kg | ||
| Dimension (W × D × H) | 185mm × 74mm × 32.5mm | ||
