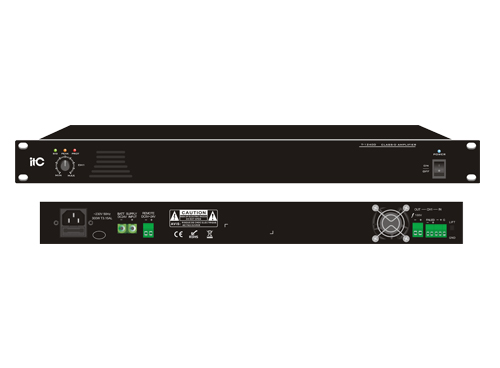

T-1120D
1-Channel Class-D Power Amplifier
Description
Specifications:
|
Model |
T-1120D |
T-1240D |
T-1350D |
T-1500D |
|||
|
Rated Power Output |
120W |
240W |
350W |
500W |
|||
|
Rated constant voltage output |
100V |
||||||
|
Input Sensitivity & Impedance |
±385mV/20KΩ, balanced input |
||||||
|
Overload Electromotive Force |
>11dB |
||||||
|
Frequency Response |
80Hz~16KHz (+1, -3dB) |
||||||
|
S/N Ratio |
≥85dB |
||||||
|
THD |
≤0.1% at 1KHz, 1/3 rated power |
||||||
|
Controls |
Remote power control and fault indicator |
||||||
|
Indicators |
signal, peak, protection, power |
||||||
|
Protection |
high temp, speaker DC output ,overload and short-circuit |
||||||
|
Cooling |
Forced cooling |
||||||
|
Power Consumption |
160W |
300W |
600W |
750W |
|||
|
Power Supply |
~110-230V 50/60Hz |
||||||
|
Dimensions |
484 x 350 x 44mm |
||||||
|
Weight |
3.8Kg |
3.9Kg |
4.0Kg |
4.1Kg
|
|||
