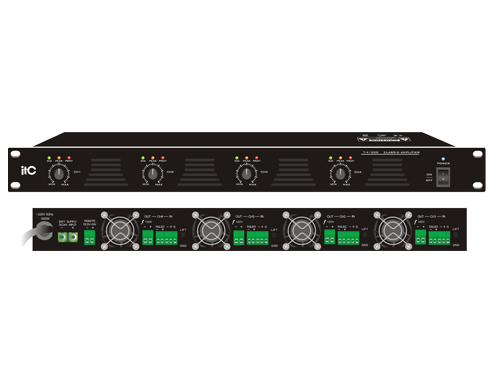

T-4240D
4-Channel Class-D Power Amplifier
Description
Specifications:
| Product Model | T-4240D | T-4350D | T-4500D | T-4120D |
| Indicators | Signal, peak, protection and power | |||
| Overload Electromotive Force | >11dB | |||
| Dimensions | 484 x 395 x 44mm | |||
| Power Supply | ~110V-230V 50/60Hz | |||
| Input Sensitivity/Impedance | ± 385mV/20KΩ, balanced phoenix connector | |||
| automatically start up when internal temp reaches 55 ℃ | ||||
| Power Consumption | 1200W | 1750W | 2250W | 600W |
| Speaker Outputs | 100V | |||
| Rated Power Output | 4x240W | 4x350W | 4x500W | 4x120W |
| Weight | 9.02Kg | 9.06Kg | 10Kg | 9.04Kg |
| S/N Ratio | ≥ 85dB | |||
| Protection | High temp, overload & short-circuit | |||
| Frequency Response | 80Hz~16KHz (+1, -3dB) | |||
| Cooling | Separate cooling system for each channel,fan | |||
| Controls | Remote power control, volume control and status monitor | |||
| THD | ≤ 0.1% at 1KHz, 1/3 rated power | |||
