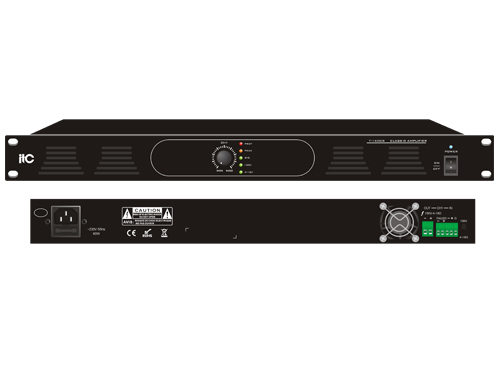

T-1120DS
Digital Mixer Amplifier
Description
Specifications:
|
Model |
T-160DS |
T-1120DS |
T-1240DS |
T-1350DS |
T-1500DS |
T-1650DS |
||||
|
Rated Power Output |
60W |
120W |
240W |
350W |
500W |
650W |
||||
|
Rated Output |
100V/4-16Ω |
|||||||||
|
Input Sensitivity |
±385mV/20KΩ,Balance input |
|||||||||
|
(impedance) |
||||||||||
|
Overload Source Electromotive Force |
>11dB |
|||||||||
|
Frequency Response |
80Hz~16KHz (+1, -3dB) |
|||||||||
|
Signal-to-noise Ratio |
≥85dB |
|||||||||
|
THD |
≤0.1% at 1KHz, 1/3 Rated power |
|||||||||
|
Control |
Remote power control and fault indication |
|||||||||
|
Indicator Light |
Signal, peak, protection, power |
|||||||||
|
Protection |
Overheat, overload, short circuit |
|||||||||
|
Cooling |
Fan forced cooling |
|||||||||
|
Power Supply |
~220V/50Hz |
|||||||||
|
Power Consumption |
90W |
160W |
300W |
600W |
750W |
900W |
||||
|
Dimension |
484×315×44mm |
|||||||||
|
Weight |
3.3kg |
3.6kg |
3.7kg |
3.8kg |
3.9kg |
4.1kg |
||||
| ≤ 0.1% at 1KHz, 1/3 rated power | ||||
