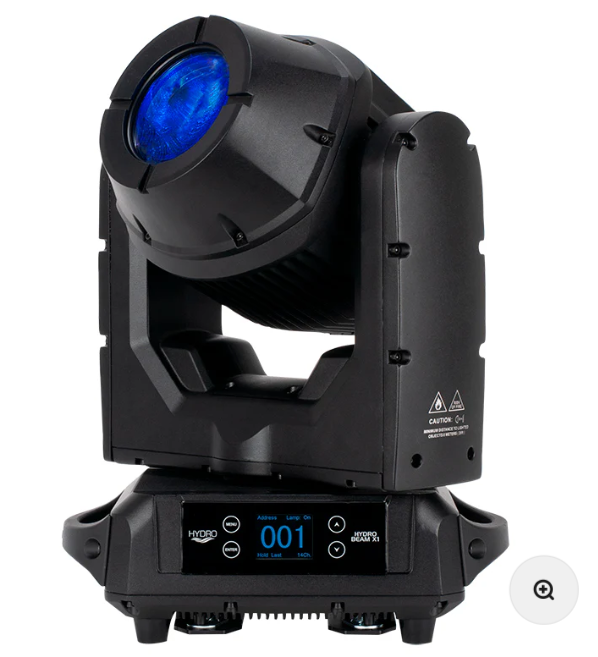

HYD100

Light Source:

• Lamp: Osram Sirius HRI 100W Long Life (6,000 hrs.) Discharge

• Color Temperature : 9000K

•CRI: 60

• Beam Angle: 3-degrees

Features:

• IP65 rated – protects from dust, sand, moisture, liquid

•Independent frost filter (wash effect)

•0-100% smooth dimming

•Various strobe speeds

•Includes omega brackets

• Wifly EXR wireless DMX

• Antenna Range: 98.42ft (30m)

Color Wheel:

•12 colors + CTB amp; UV + open

GOBO Wheel:

• 1 metal GOBO Wheel with 11 GOBOs, 4 GOBO reducers + open

Prism Wheel:

• 16-facet circular prism (rotates in either direction)

Construction:

•Display: OLED display

•Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: locking IP65 (with rubber protective covers over connections)

• Protection Rating: IP65

• All metal case design

Control:

• 2 DMX Channel Modes: 11/14 Channels

• Control Mode: DMX512, RDM (Remote Device Management)

• Firmware Upgrade: Update viaIP65 USB port (with rubber protective covers over connections)

• With Wired Digital Communication Network

Pan/Tilt:

•Pan/Tilt: 540/270

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power Linking: 6 units @ 120V; 12 units @ 240V

• Power consumption: 235W max

• Min/Max Ambient Temperature: -10ºC ~ 40ºC

Dimensions amp; Weight:

• Dimension (LxWxH): 13.2”x 8.3” x 16.9” / 336 x 210 x 430mm

•Weight: 36 lbs. / 16.3kg.

Operating Temperature:

Minimum operating temperature: 14°F (-10C)

Maximum operating temperature: 113°F (45C)

Approvals

cETLus Approved (Control #4000358)
