HYD120

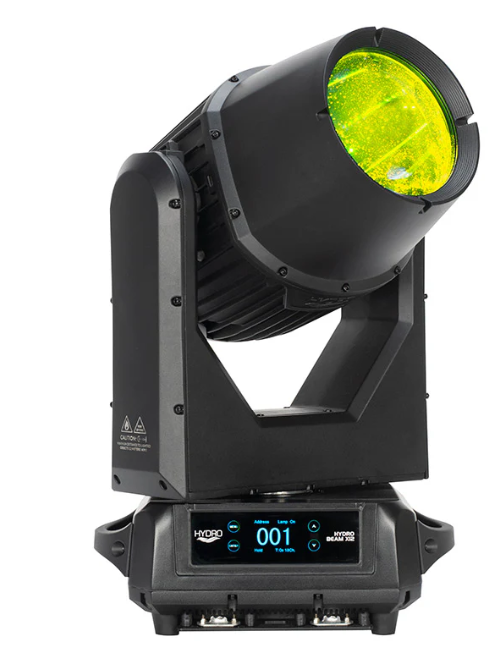

The ADJ Hydro Beam X12 is a high output moving head beam fixture with a robust IP65-rated enclosure which provides protection from dust, sand, moisture, and liquid. Powered by a 260W Philips® Platinum 12R LL MSD Discharge Lamp, it creates an intense narrow beam of light ideal for generating aerial effects at concerts, tours, festivals, and dance events. Its features include 14 colors + white, 16 GOBOs + open, motorized focus, two rotating prisms and a Frost Filter.
Description
Specifications
Light Source:
• Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
• Color temperature: 7200K
• Color temperature: 7200K
• LUX: 357,728 @10M
Features:
• DMX512 RDM compatible
• 2° beam angle
• High quality, optical glass lens
• Motorized Focus + 16-bit fine focus
• Frost Filter to create wash effect
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe effects with speed control
• Wifly EXR, wireless DMX onboard
• USB firmware update port
• Fan cooled
Color Wheel:
• 14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) UV]
• Split Colors
• Bidirectional color wheel scrolling
GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect
• Bidirectional gobo wheel scrolling
Prisms:
• 6-facet linear and 24-facet circular
• Bidirectional prism rotation for each prism
• Prisms can be overlayed
Control:
• Configurable via RDM
• Controllable via DMX512 via hardwire or wirelessly with Wifly EXR Transceiver (Sold Separately)
• 2 DMX Channel Modes: 14/18 Channels
• Color LCD display with 4-button function menu
• 5 Dimmer Curves
• 0-100% smooth dimming
• Various strobe effects with speed control
• USB firmware update port
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
Connections:
• DMX Connections: 5-pin DMX In/Out
• Power Connections: IP65 Locking Power In/Out
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 412W (@120V), 405W (@230V)
• Min/Max Ambient Temperature: -10ºC ~ 40ºC
Dimensions Weight:
• Dimension: 14” (L) x 9.4” (W) x 24.4” (H) / 356 x 240 x 621mm
• Weight: 48 lbs. / 21.8 kg.
What’s Included:
• Omega Brackets for hanging
• 4.92ft. / 1.5m. IP65 Locking power cable
Optional Road Cases:
• DRC MHX: two Hydro Beam X12 fit in the DRC MHX Road Case
Approvals / Ratings:
• cETLus (Control # 4000358)
• CE Certified
• IP65
Specifications subject to change without notice.
