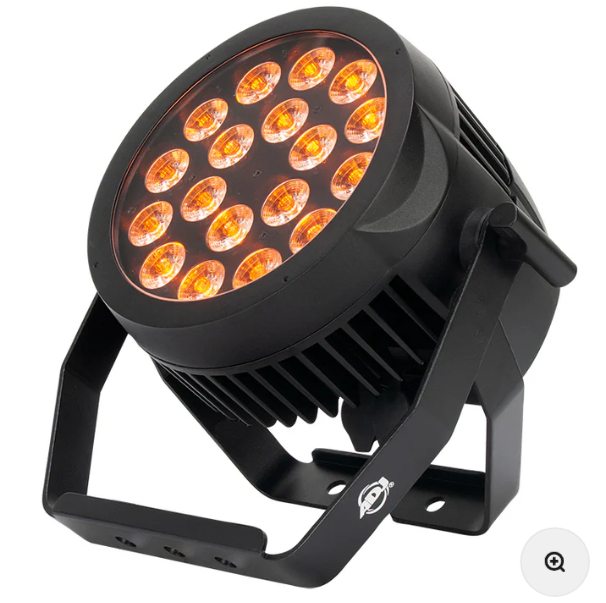

HEX817

Optical:

• Light Source: 18 x 12-Watt RGBAW + UV LEDs (Red,

   Green, Blue, Amber, White UV LED) - Rated at

   approximately 50,000 hrs.)

• Beam angle: 25-degree

Features:

• 6 DMX Modes: 6, 6+, 9, 9+, 10, 12-channel

• 4 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode and Program Mode

  Mode and DMX Controlled

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dim Curves (Standard, Stage, TV,

   Architectural Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 1000%

• Supports RDM (Remote Devise Management)

• Scissor Yoke safety eye

Connections:

• IP65 PowerLock AC In/Out connections

• IP65 Data linkable via 5-pin XLR cables

• Daisy chain: 12 units (120V); 24 units (220V)

Control:

• 4-button, DMX digital display on rear panel

• 4 DMX Modes: 6, 7, 8, 13-channel

Dimensions / Weight:

• Dimensions (LxWxH): 13.25” x 9.25” x 11” / 336x233x279mm

• Weight: 13.5 lbs. / 6.1 kg.

Certifications:

• IP Rating: IP65 Outdoor Rated

• cETLus (Control # 4010765)

Included in Box:

• IP65 PowerLocking cable

Specifications subject to change without notice.
