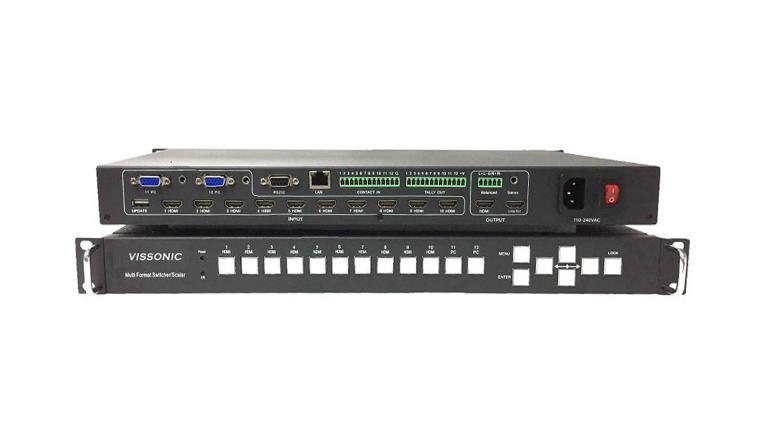

VIS-PSC1202
Overview
VIS-PSC1202 is a high-performance presentation scaler/switcher for HDMI and computer graphic signals. The unit scales the video, embeds the audio, and outputs the signal to two HDMI outputs with analog L/R stereo and balanced stereo audio out simultaneously.
Features
●Perfect scaling and deinterlacing technology.
●HDCP compliance – The HDCP license agreement allows copy-protected data on the HDMI input to pass only to the HDMI outputs.
●12 video inputs – 10 HDMI on HDMI connectors, 2 computer graphics video on 15-pin VGA connectors
●Two HDMI scaled outputs (the main output and loop output with the same contents). When 4K signal input, the unit will pass the input directly to two outputs.
●Up to 1080p/3840x2160@30 resolutions with input and output.
●Analog audio output with 3.5mm jacket and 5 pin phoenix female connector which used for balanced audio output
●Built in performance management – color, brightness, contrast and sharpness adjust
●On-Screen-Display ( OSD ) Menu for easy configuration
●Control the unit with front button,RS232 port and TCP/IP
Specifications
| Electrical parameters | |
| Interface | HDMI-A, DB-5, Phoenix female connector |
| HDMI version | HDMI1.4 |
| Bandwidth | 300MHz |
| Resolution | Up to 4Kx2K@30Hz,4Kx2K@60Hz-4:2:0 |
| Clock Jitter | <0.15 Tbit (1080p@60) |
| RiseTime | <0.3Tbit (20%--80%) |
| RiseTime | <0.3Tbit (20%--80%) |
| Transmission Delay | 5ns |
| Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| RS232 control | |
| Baud rate and protocol | Baud rate：115200,data bit：8， |
| stop bit：1,No parity checking | |
| Power | |
| Max Consumption | 25W, 110-240VAC |
| Matrix Mechanical dimensions | |
| Size(mm) | 430(L)X220(W)X44 (H) |
| Weight | 3Kg |
| Other | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20 to 70°C |
| Permissible humidity | 10%-50% |
| Weight | 3Kg |
