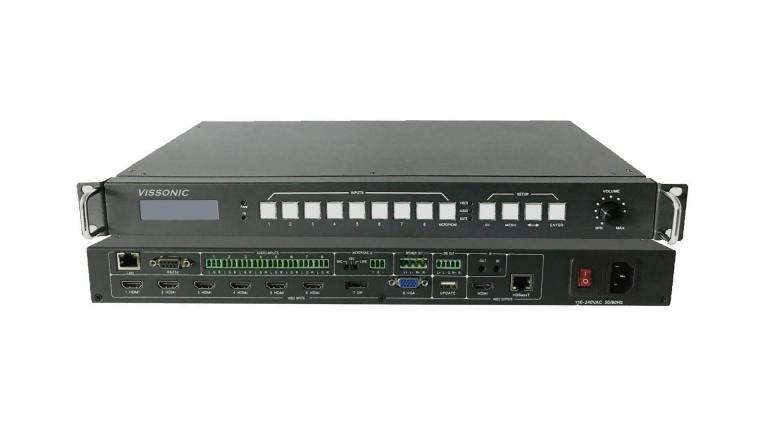

VIS-PSC802
Overview
VIS-PSC802 is a high-performance seamless UHD presentation switcher with multi-format signal handling. This device scales the video, extract or embed the audio, and outputs the signal through one HDMI port and one HDBaseT port , and 2x8W speaker and balanced stereo audio output simultaneously.
Features
●Seamless switching
●Perfect 4K scaling technology
●Support HDMI 2.0,HDCP 2.2,DP 2.0
●8 video inputs – 6 HDMI ports, 1 DP port, 1 VGA port
●10 Audio source options for each HDMI/DP video source
●LR1,LR2,LR3,LR4,LR5,LR6,LR7,LR8,Microphone,embedded (the audio stream of HDMI source inner)
●9 Audio source options for VGA video source
●LR1,LR2,LR3,LR4,LR5,LR6,LR7,LR8,Microphone
●3 Microphone options by dial switch, 48V (Phantom supply), Mic, Line
●1 HDMI and 1 HDBaseT outputs, same content on HDMI and HDBaseT out
●Up to 3840x2160@60 resolutions with input and output.
●2x8W speaker output and balanced audio output
●Control the unit with front button,RS232 port and TCP/IP
●IR IN/OUT for HDBaseT transmission
●EDID selection，out resolution selection
●Front panel,RS232,TCP/IP (LAN 10M/100M) control
●Note, When VGA or DVI input, there is no seamless switching for this source
Specifications
| Electrical parameters | |
| Interface | HDMI-A, DB-15, Screw Connectors, RJ45, Display Port |
| HDMI /DP /VGA Version | HDMI2.0,HDCP2.2,DP1.2,VESA |
| Bandwidth | 18Gbps |
| Video Resolution | |
| Input |
800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz. Note: This Device does not support 4:2:0 Color space |
| Output | 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz, |
| EDID option | Auto, Manual,3840x2160@60, 3840x2160@30, 1920x1080@60,1280x720@60,1920x1200@60 |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| RS232/Ethernet control | |
| Baud rate and protocol | Baud rate：57600, data bit：8， |
| stop bit：1,no parity checking | |
| Ethernet | IE10.0+,HTML5 |
| Power | |
| Max Consumption | 60W, 110-240VAC |
| Matrix Mechanical dimensions | |
| Size(mm) | 430(L)X220(W)X44 (H) |
| Weight | 4Kg |
| Other | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20 to 70°C |
| Permissible humidity | 10%-50% |
