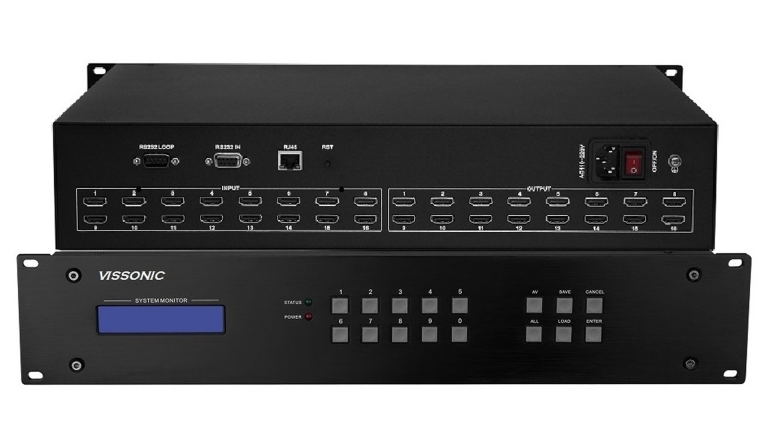

VIS-PHD1616
Overview
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition signal transmission. It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
Features
●Support 4 HDMI inputs and 4 HDMI outputs
●Support 3 GHz video formats up to 4k × 2k at 24 Hz/25 Hz/30 Hz, in addition to all mandatory HDMI 3D TV formats.
●HDCP and DVI compliant
●Supports 10/100Mbps Ethernet network connection
●Supports Baud rates up to 115200bps
●No loss and no delay HDMI Crosspoint switch
●Support HDMI 1.4 protocol
●Flexible control: front key panel with LCD, RS232 bus, TCP/IP control with RJ45 interface
●Input HDMI cable lengths up to 30 meters
●Mode saving function, can save and load 32 different scenes.
●Supports default HDMI EDID and learns the EDID of displays
●Easy installation with rack-mounting design
Specifications
| Model | VIS-PHD1616 |
| Specification | Input/output support 16 channels |
| Input | HDMI |
| Output | HDMI |
| Control way | Front panel,RS-232,TCP/IP |
| Resolution | Up to 4k x 2k（4096×2160 ） |
| HDMI version | HDMI 1.4，Support 3D TV |
| HDCP | Compliant to HDCP 1.4 |
| Hot plug | Support plug and play |
| Input cable | Up to 30m(98 feet) |
| Output cable | Up to 15m (50 feet) |
| HDMI input/output interface | Type A, 19 pin, female |
| Power supply | 110~220 VAC |
| Environment | Storage and Work Temperature: -20°~+70°C; humidity:10%~90% |
| Weight | 7KG |
| Consumption | 20W |
| Dimension(WxDxH) | 2U（440mmx333mmx88mm） |
| Warranty | 3 years |
