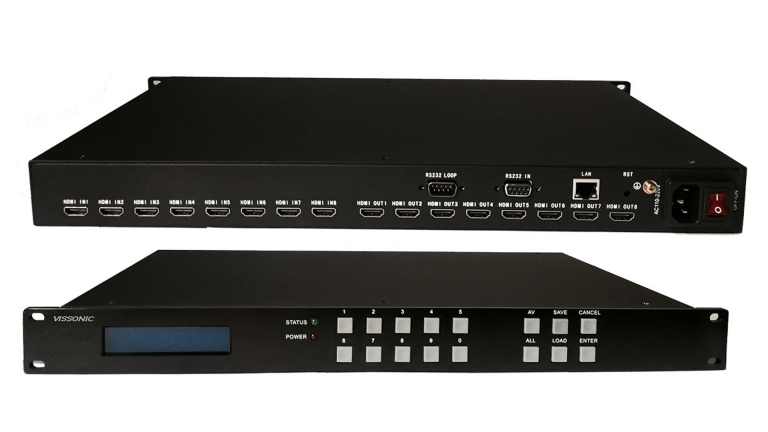

VIS-PHD0808
Matrice HDMI 8x8 UHD 4Kx2K
Description
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
Overview
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition signal transmission. It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
Features
●Support 4 HDMI inputs and 4 HDMI outputs
●Support 3 GHz video formats up to 4k × 2k at 24 Hz/25 Hz/30 Hz, in addition to all mandatory HDMI 3D TV formats.
●HDCP and DVI compliant
●Supports 10/100Mbps Ethernet network connection
●Supports Baud rates up to 115200bps
●No loss and no delay HDMI Crosspoint switch
●Support HDMI 1.4 protocol
●Flexible control: front key panel with LCD, RS232 bus, TCP/IP control with RJ45 interface
●Input HDMI cable lengths up to 30 meters
●Mode saving function, can save and load 32 different scenes.
●Supports default HDMI EDID and learns the EDID of displays
●Easy installation with rack-mounting design
Specifications
| Model | VIS-PHD88 |
| Input type | HDMI |
| Output type | HDMI |
| Video Protocol | HDMI 1.4, HDCP 1.4, support 3D TV |
| Maximum resolution | Up to 4kx2k at 30Hz |
| HDMI interface | Type A, 19 pin, female |
| Serial Interface | RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male |
| Input cable length | Adaptive equalizer for cable lengths up to 30 meters |
| Output cable length | ≤ 15m |
| RJ45 control protocol | TCP/IP |
| Ethernet rate | Self-adaptive 10M/100M |
| Storage environment | Temperature: -20℃ ~ +70℃, humidity: 10%~90% |
| Work environment | Temperature: -20℃ ~ +70℃, humidity: 10%~90% |
| Power supply | AC 110~240V |
| Maximum power dissipation | 10W |
| Dimensions(WxDxH) | 1U( 436.8X280X44.5)mm |
| Weight | About 2.3Kg |
| MTBF | 30,000 hours |
