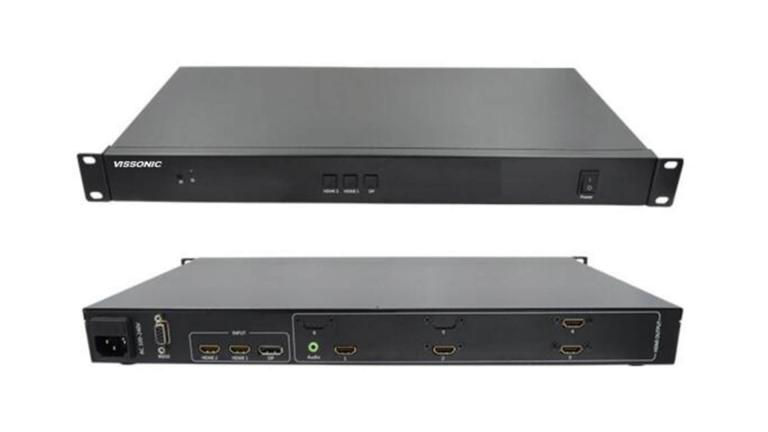

VIS-MDW
Overview
VISSONIC VIS-MDW series is a 4K resolution multi-screen multi-directional stitching processor. It can support the splicing process of the screen rotated 90 degrees.
This device can easily and quickly configure the display screen placed at a special angle, without affecting the normal display of the screen, and can support a specially designed ultra-clear display pattern.
Widely used in mall advertising, outdoor scenes, hotels, clubs, restaurants and other places
Features
●Support horizontal or vertical splicing of screens of different sizes at the same time
●Any output port can be set to 90 degrees, 180 degrees, 270 degrees flip
●Can intercept any part of the input signal for display
●Support HDMI signal input with resolution and refresh rate up to 3840x2160@60HZ
●The output signal can be up to 1920x1080@60Hz
●Support arbitrary cropping
●Professional control software with simple operation
●EDID Management
Specifications
| Name | specification |
| Input | |
| input interface | 1 channel HDMI2.0, 1 channel DP, 1 channel HDMI1.4 signal; |
| Resolution | HDMI and DP support a maximum resolution of 3840*2160@60HZ, backward compatible; |
| Output | |
| Output Interface | Customized 2 to 12 HDMI 1.3 output connection display devices, support audio and video synchronization output; A 3.5mm audio left and right channel stereo for stereo sound; |
| Output resolution | 1920x1080@60HZ； |
| Color depth | 24bit, 16.77 million colors |
| control method | Chassis button, software control; |
| Input voltage | AC voltage 100-220V; |
| Display mode | Alien stitching and standard stitching modes, etc. |
| Product Size（1U） | 440mm (length) x240mm (deep) x43mm (height) |
| Product Size（2U） | 442mm (length) x242mm (deep) x45mm (height) |
| Net weight | （1U）3.0KG、（2U）3.0KG |
| Power consumption | 20W maximum |
Model for order
VIS-MDW-4..........................4 outputs video wall controller(1U)
VIS-MDW-6..........................6 outputs video wall controller(1U)
VIS-MDW-12..........................12 outputs video wall controller(2U)
VIS-MDW-25..........................25 outputs video wall controller(2U)
