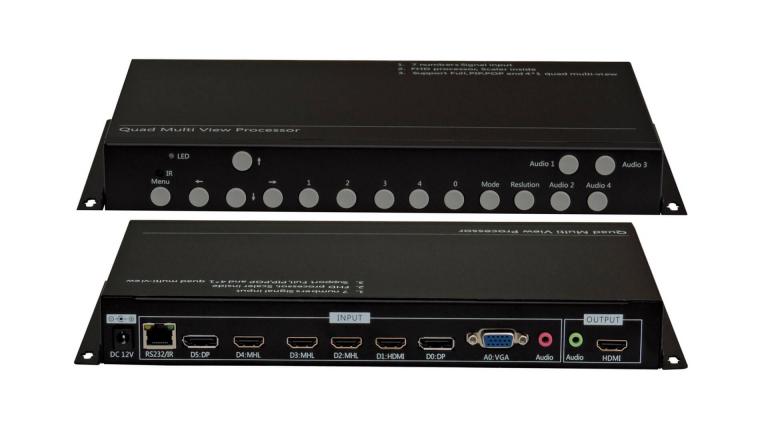

VIS-MV71
Overview
VIS-MV71 Switch allows you to view up to four different analog and digital video sources simultaneously on one display device. Advanced viewing options include quad-mode, full-screen mode, POP (picture out picture) and PIP (picture in picture) mode.
VIS-MV71 Multi-Viewer can support 1 channel VGA, 2-way DP, 4-way HDMI video signal input, 1 Audio signal binding VGA input, all input signal can be implemented audio and video synchronization switching;
Support 1 HDMI video signal output, the output resolution and refresh rate up to 1920 * 1080 @ 60HZ; 1 channel Audio signal output can be connected to an external audio amplifier.
VIS-MV71 are mainly used in video conferencing, teaching, exhibitions, shows, games, etc. where need to use a single display unit simultaneously display multiple HD signals
Features
●Support Quad-mode ,Full screen, and fix position POP, PIP function
●Support 1 VGA, 2-way DP, 4-way HDMI (including 3-way compatible MHL) input signal;
●Support 1 HDMI output with resolution up to 1920 * 1080 @ 60HZ;
●All input signals contain audio, support audio and video synchronous switching and four audio independent switching under quartering;
●Support control by chassis buttons, IR remote control, RS-232 control;
Specifications
| Model | VIS-MV71 |
| Input | |
| Input port | 1 VGA, 2-way DP, 4-way HDMI, 1 stereo audio |
| Resolution | DP supports a maximum resolution of 1920 * 1080 @ 60HZ, backward compatible; HDMI supports a maximum resolution of 1920x1080 @ 60HZ, downward compatible |
| audio | Input audio supports 3.5mm audio interface for bind VGA |
| Color depth | 24bit,1677 ten thousand |
| POP,PIP mode | Fixed model |
| Output | |
| interface | 1 channel HDMI 1.4 output connected display devices that support audio and video sync output; A 3.5mm audio left and right channel stereo, for connecting stereo |
| Resolution | 1920 * 1080 @ 60HZ, 1280 * 720 @ 60HZ optional |
| Color depth | 24bit,1677 ten thousand |
| Control mode | RS232、IR、case key |
| voltage | DC:12V |
| dimension | 278mm(L)*36mm(H)*166mm(W) |
| weight | 1.2kg |
| Power | Maximum 15W |
