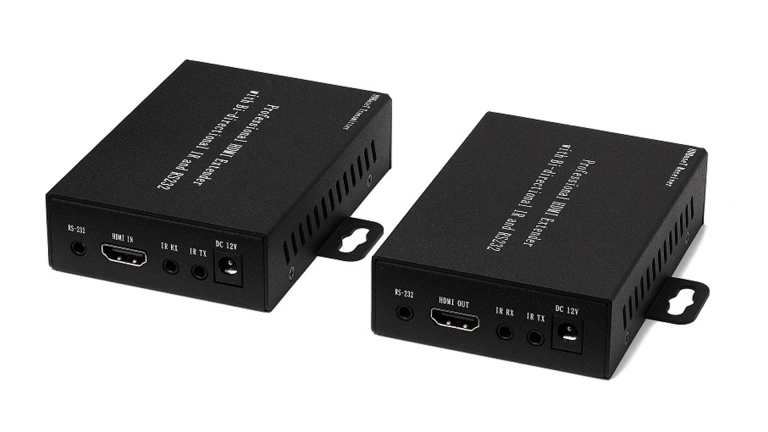

VIS-HE7
Extender HDMI HDbaseT 70m
Description
Overview
The VIS-HE7 HDMI Extender over cat5e/cat6 is to extend the HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Cat5e/6 cable. It also transmit Bi-directional Infrared signal together with the HDMI signal, capable of controlling the source in the device side out to 70 meters, or from source to device, RS232 pass through makes it more convenient to be controlled.
Specifications
●Allow HDMI signal/IR transmit up to 100 meter over Cat5e/6 cable
●HDMI signal from 1080P to 4Kx2K, 3D video format support, HDCP compliance
●IR signal/RS232 pass through together with HDMI over Cat5e/6 cable bi-directionally for remote control
●Ultra Light&thin case design for easy installing
Specifications
| HDMI video interface | |
| Protocol support | HDMI1.4, HDCP1.3，EDID1.4 |
| Pixel bandwidth | 330MHz |
| Interface bandwidth | 10.2Gbps |
| Maximum resolutions | 1900x1200@60Hz，3840X2160@30Hz HDTV: 1920x1080P@60Hz BD:4Kx2K@30Hz |
| Signal type | HDMI 1.4 / T.M.D.S. |
| IN/OUT interface | HDMI type A, female; HDBaseT |
| Signal amplitude | T.M.D.S. +/- 0.4Vpp |
| Min/Max Voltage | T.M.D.S. 2.9V/3.3V |
| Input impedance | 100Ω |
| Dimensions | 135mmX75mmX15mm |
| Control interface | |
| Serial | RS232 (3PIN 3.5mm ) |
| Baud | 110-115200bps |
| IR control | IR (3.5MM) |
| IR frequency | 38K |
| ETHERNET | RJ45 |
| Transmission Distance | Up to 100m by CAT5e/6 |
| Power supply | 18V DC |
| Maximum dissipation | 18W |
