1 L-Band LNB Dish over fiber Extender with Outdoor Enclosure
Description

Description

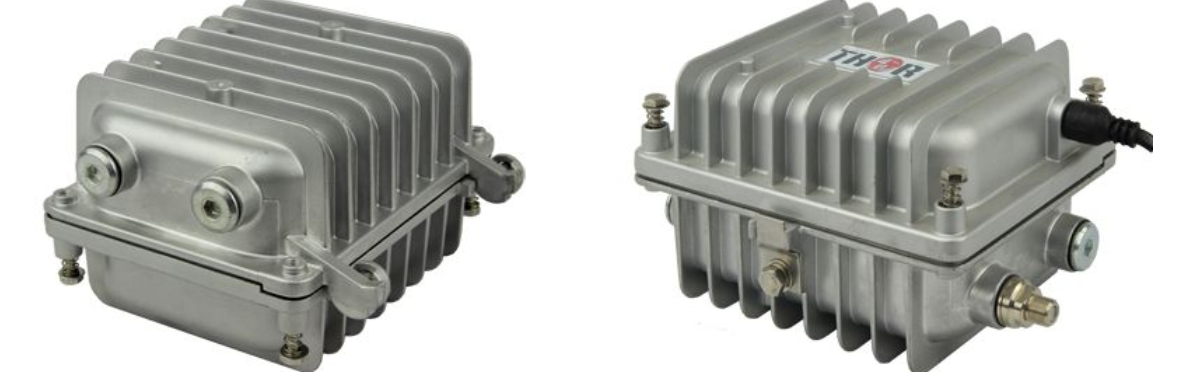

F-LB11  Weatherproof Outdoor L-Band Kit

Ruggedized environmentally hardened optical transmitter and receiver kits

These single channel L-Band over fiber kits offer the same link performance as standard Thor F-LBAND systems, and are suitable for outdoor installation.  Ideal for mounting on antenna masts, or in base station equipment racks; F-LB11 single channel kits can be installed in locations directly exposed to the elements.

Features

  • Can be installed in any location indoors or out
  • Allows optical transmitter to be mounted closer to the antenna
  • Fully sealed enclosure can be installed directly on antenna
  • Can be ordered for specific frequency range response
  • Wide use of applications, bi-directional models available

IMPORTANT NOTE*** (it is very important to interface our unit with SC/APC - Angle Polished Connector to avoid any light reflections.

If your fiber is terminated with the  SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.

Drawings

Specification

*All Specifiactions Subject to Change Without Notice
Transmitter Properties
  • Wavelength

1310 nm (standard)

1550 nm (optional)  FP/DFB
  • Output Power
 +2.0 dBm +/- 2 dB
  • Frequency Response Range
 45 - 2800 MHz
  • RF Input Level
 55 - 78 dBµV
  • LNB Power (optional)
 13 or 18 VDC /650mA Max 22KHz
  • RF Connector
 F-Connector or by request
  • RF Return Loss
 13 dB
  • RF Input Impedance
 75 Ohm
  • CNR
 40 dB
  • IMD
 40 dB
Reciever Properties
  • Wavelength
 1290 - 1600 nm
  • Optical input power range
 -13 - 1 dBm (sensitivity -13 dBm)
  • Frequency Range
 900 - 2600 MHz
  • Output RF Response Levels

  • Optical Input = 0 dB
 RF Output = 88 dBuV
  • Optical Input = -3 dB
 RF Output = 82 dBuV
  • Optical Input = -6 dB
 RF Output = 74 dBuV
  • Optical Input = -9 dB
 RF Output = 68 dBuV
  • Optical Input = -12 dB
 RF Output = 63 dBuV
General Parameters
  • Power Supply Info
 18VDC, 3.5W
  • Tempurature Range
 (-45) - 150 F
  • RF Connectors

F-Connector
  • Optical Connectors

SC/APC

IMPORTANT NOTE*** (it is very important to interface our unit with SC/APC - Angle Polished Connector to avoid any light reflections.

If your fiber is terminated with the  SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.
  • Dimensions
 118 mm x 210 mm x 40 mm
  • Weight
 0.25 kg
