DEX5145
Supports Intel® 14th-Gen Meteor Lake-U processor, offering powerful AI computing
Description
CPU
Socket: CPU on board
Type:
Intel 14th Meteor Lake-P core i CPU TDP<=15W
U5-125U, 1.3~4.3 GHz, 2+8 cores
U7-155U, 1.7~4.8GHz, 2+8 cores"
Type:
Intel 14th Meteor Lake-P core i CPU TDP<=15W
U5-125U, 1.3~4.3 GHz, 2+8 cores
U7-155U, 1.7~4.8GHz, 2+8 cores"
AiCU
Optional
Memory
Channel: Dual Channel
Type: DDR5 SO-DIMM x 2
Data rate: 5200/5600
Max Memory: 64G
Type: DDR5 SO-DIMM x 2
Data rate: 5200/5600
Max Memory: 64G
Graphics
Intel Graphics
Expansion
M.2 slot x1, 2280(key M for PCIe /SATA SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio ALC265CG
Channel: Stereo
Channel: Stereo
LAN
Intel Giga LAN x1+ 2.5GLAN x1 (i219LM+i226V)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
M.2 SSD x 1

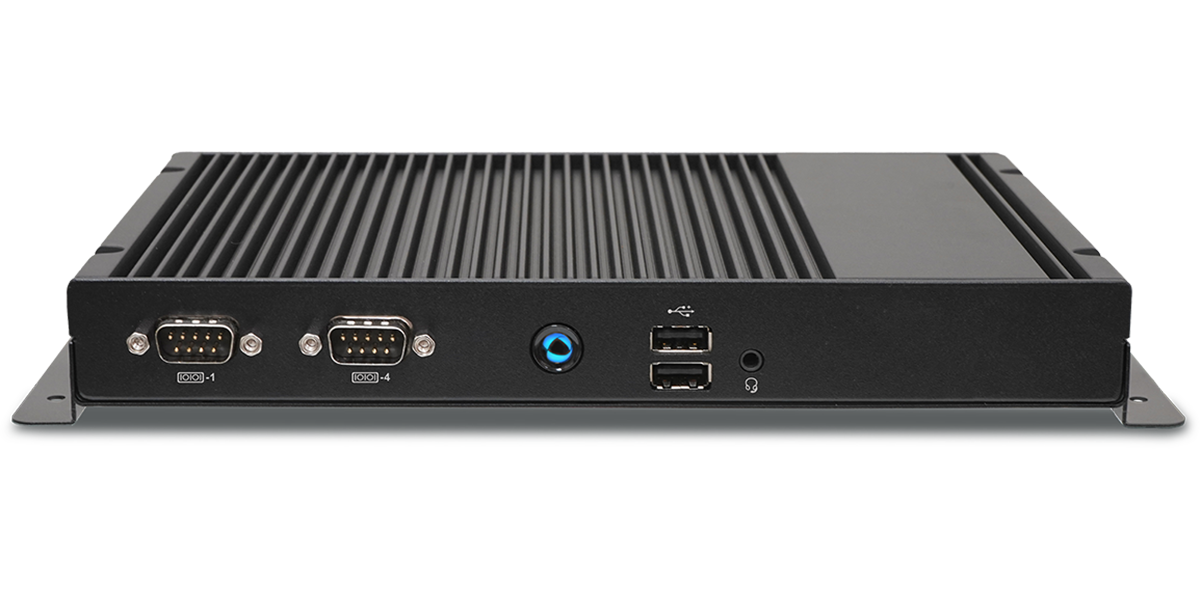

Front Panel I/O
USB 2.0 Port x 2
Others:
Power Button x 1,
DB9 RS232 x 1,
DB9 RS232/422/485 x 1
Combo audio jack x 1
Others:
Power Button x 1,
DB9 RS232 x 1,
DB9 RS232/422/485 x 1
Combo audio jack x 1
Rear Panel I/O
DC Jack: 12~36V, 5517 x 1
HDMI 2.0 Port: HDMI2.1 x2
USB 3.2 Port x 4
RJ45 LAN Jack x 2
Antenna Holes x 2
Others: Extend power SW x 1
HDMI 2.0 Port: HDMI2.1 x2
USB 3.2 Port x 4
RJ45 LAN Jack x 2
Antenna Holes x 2
Others: Extend power SW x 1
CPU Thermal Module
AOPEN Fanless design
Dimensions (W x H x D)
240(W) x 30(H) x 158(D) mm
9.44(W) x 1.18(H) x 6.22(L) inch
9.44(W) x 1.18(H) x 6.22(L) inch
Volume
1.14L
Weight
1.59kgs / 3.50lbs
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
90W (19V, 4.74A) AC Adapter
P/N: 90.CX157.0210
P/N: 90.CX157.0210
Input Voltage
AC 100 ~ 240V
MTBF
50,000hrs
Operating Temperature
-20 ~45ºC (-4 ~ 113ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (45ºC non-Condensing)
Support
Windows
Linux
Linux
