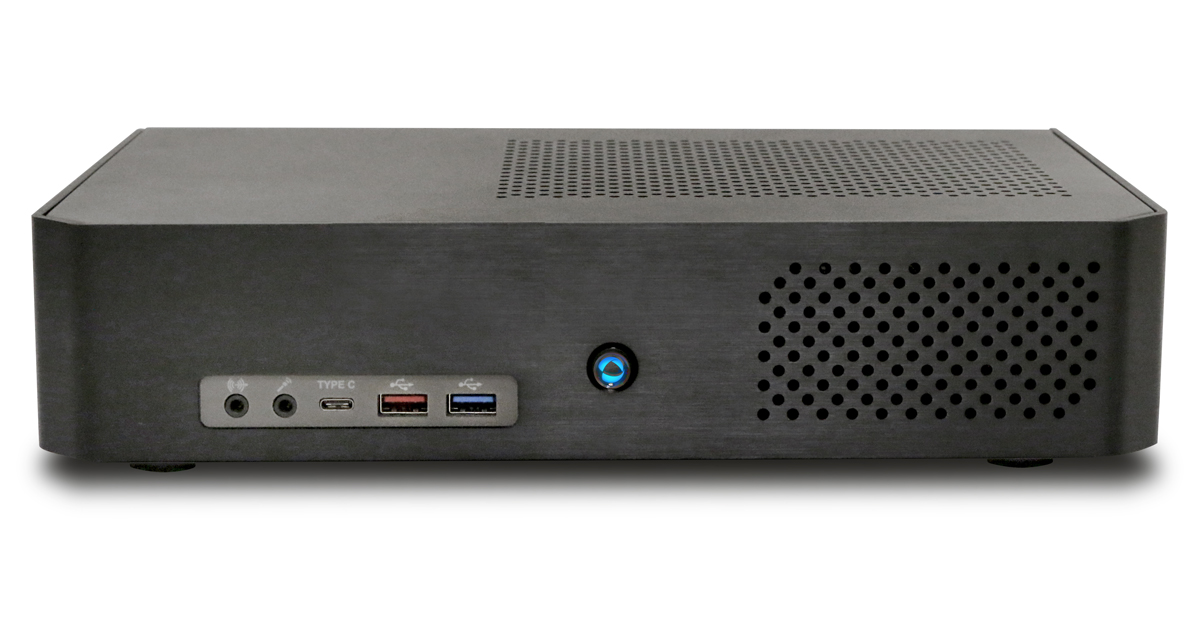

DEV7710 P
High Computing Power with excellent graphics
Description
CPU
11th Generation Intel® Core™
(i3, i5, i7, i9)
(i3, i5, i7, i9)
GPU
Intel® UHD 610 / 630
Chipset
-
AiCU
-
Memory
Dual Channel
DDR4 SO-DIMM
2400 / 2666 MHz
32GB
DDR4 SO-DIMM
2400 / 2666 MHz
32GB
Expansion
M.2 2280 x 1 M.2 2242 / 2280 x 1, M.2
2230 x 1
2230 x 1
LAN
Intel Gigabit i219 x 1
10 / 100 / 1000 Mbps
10 / 100 / 1000 Mbps
Storage
M.2 SSD x 2
Front Panel I/O
USB3.2 x 2
Line-out x 1
Mic-in x 1
USBC x 1
Line-out x 1
Mic-in x 1
USBC x 1
Rear Panel I/O
DC Jack x 1
HDMI1.4 x 1
DP1.4 x 1
USB3.2 x 4
RJ45 LAN x 1
Antenna Holes x 2
Discrete Graphics Card Slot x 1
HDMI1.4 x 1
DP1.4 x 1
USB3.2 x 4
RJ45 LAN x 1
Antenna Holes x 2
Discrete Graphics Card Slot x 1
CPU Thermal Module
AOPEN Thermal Module
Dimensions (W x H x D)
300 x 70 x 212 mm
6.30 x 0.98 x 3.70 inch
6.30 x 0.98 x 3.70 inch
Volume
4.46L
Weight
3.2 kgs / 7.1 lbs
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
AC 100 ~ 240V
Input Voltage
180W / 19.5V / 9.23A
Warranty
2 Years
MTBF
50.000 hrs
Operating Temperature
0 ~ 45° C (32 ~ 113° F)
Storage Temperature
0 ~ 60° C (-4 ~ 140° F)
Relative Humidity
95% RH (45° non-condensing)
