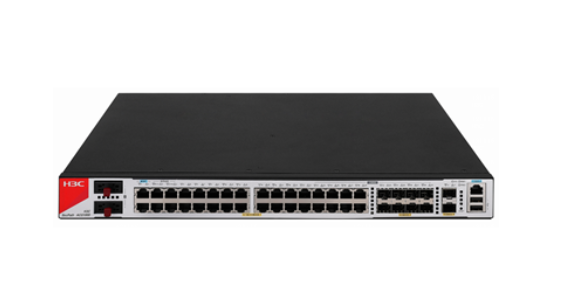

SecPath ACG1000-AI-30

Fixed service interfaces

The device features 18 Gigabit copper interfaces, 2 ten-gigabit fiber interfaces, 4 bypass interfaces, 8 combo interfaces, and 2 management interfaces.

The device features 16 Giga copper interfaces, 6 Giga fiber interfaces, 2 ten-Giga fiber interfaces, 4 combo interfaces, and 1 management interface.

Console port

1

1

Memory

4 GB

4 GB

Storage

Two M.2 slots for hard disks

One 2.5-inch hard disk slot

Mean time between failures (MTBF)

≥ 100000 hours

≥ 100000 hours

Default configuration weight

3.7 Kg

5.4 Kg

Dimensions (Length × Height × Depth/mm)

440*43.6*360mm

440*435mm

Temperature

Operating: 0 to 45°C

Non-operating: -40 to 70°C

Operating:

Without hard disks: 0°C to 45°C

With hard disks: 5°C to 40°C.

Non-operating: –40°C to 70°C

Humidity

Operating: 5% to 95%, non-condensing

Non-operating: 5% to 95%, non-condensing

Operating:

Without hard disks: 5%RH to 95%RH

With hard disks: 10%RH to 90%RH

Non-operating: 5%RH to 95%RH

Power supply

Dual power supplies

Optional dual power supplies

Maximum input current

1A

2A

Maximum power supply (W)

70 W

150 W

Hardware bypass

Yes

No
