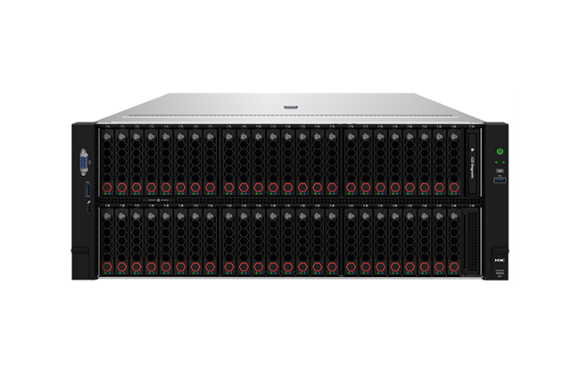

R6900 G7

CPU

4 6th Generation Intel^®Xeon^® processor series

86 Cores for each Processor with 350W power consumption

Memory

64 DDR5 RDIMM Slots, 6400 MT/s Data Rate

RAID controller

Optional Mezz SATA RAID controller (CTL), supporting RAID 0/1/10/5

Optional standard PCIe slot based HBA cards and RAID controllers

FBWC

8 GB Cache

Supports Supercapacitor protection

Storage

Supports SAS/SATA HDD/SSD drives; maximum support for front 50SFF + rear 8LFF

Supports up to 48 front U.2 NVMe drives*; supports PCIe NVMe storage accelerator cards

Optional dual M.2/SD cards as startup disks; M.2 supports types including NVMe or SATA

Network

1 onboard dedicated 1Gbps management network port

Optional expansion via OCP 3.0 x16 slots for 4x1GE copper ports or 2x10GE copper/fiber ports or 2x25GE fiber ports

Optional standard PCIe slot-based network adapters; supports 1/10/25/40/100/200/400Gb NICs or IB cards

Expansion slots

Up to 22 PCIe 5.0 standard form factor slots

2 OCP 3.0 slots, supporting hot swapping

1 Mezz slot, PCIe 5.0 standard

Ports

2 VGA Rear Ports (1 Front, 1 Rear)

3 USB 3.0 Ports (1 Front, 2 Rear), 3 USB 2.0 Ports (1 Front, 2 Internal)

1 Management Port , 1 serial port

GPU

Up to 6 double-width or 12 single-width GPU cards

Optical drive

External Optical Disk Drive, Optional

Management

Unified management platform, providing HDM agentless management tool (with dedicated management port) and H3C iFIST/UniSystem management software

Optional LCD touchable intelligent management module

Security

Intelligent Front Security Bezel

TCM/TPM2.0

Silicon Root of Trust

Two-Factor Authentication

Secure decommissioning function

Power supplies

Optional up to 4 power supplies, optional Platinum/Titanium level, supporting N+N redundancy

Optional 336V DC power supply with N+N redundancy

Supports 8 N+1 hot-swappable redundant fans

Standards

CE，UL , FCC，VCCI，CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F) (Operating temperature support varies depending on different configurations. For details, please refer to the detailed product technical documentation description.)

Dimensions

(H×W×D)

4U Height

Without a security bezel: 174.8×447×830mm (6.88×17.60×32.68 in)

With a security bezel: 174.8×447×858mm (6.88×17.60×33.78 in)
