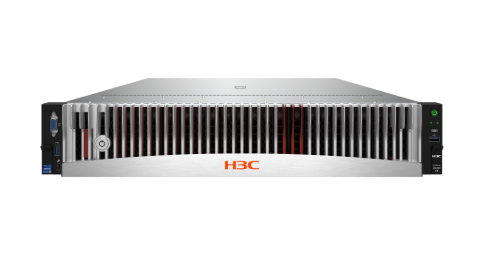

R6700 G6

CPU

4 4th generation Intel^® Xeon^® Sapphire rapids SP series

60 Cores for each Processor with 350W power consumption

Chipset

Intel^®C741

Memory

64 DDR5 RDIMM slots, 5600 MT/s data rate

RAID controller

Optional HBA cards and RAID controllers based on standard PCIe slots

Supports dual M.2 configuration with RAID 1 for os installation disks

Supports SD card as boot disk.

FBWC

8 GB Cache

Supports Supercapacitor protection

Storage

27 SAS/SATA HDD/SSD Drives

26 U.2 NVMe Drives

Supports PCIe NVMe storage accelerator card and dual hot-swappable SATA M.2 Kit (Optional)

Network

1 Onboard 1Gbps Management Network Port

Optional expansion via OCP 3.0 x16 slots, supporting 4×1GE copper ports or 2×10GE copper/fiber ports or 2×25GE fiber ports

PCIe Standard Slots for 1/10/25/40/100/200Gb Ethernet Adapter or 100/200Gb InfiniBand card

Expansion slots

Up to 8 PCIe 5.0 x16 Standard Slots

Up to 10 PCIe 5.0 x8 Standard Slots

Up to 3 OCP 3.0 Slots

Ports

2 VGA Rear Ports (1 Front, 1 Rear)

3 USB 3.0 Ports (1 Front, 2 Rear), 3 USB 2.0 Ports (1 Front, 2 Internal)

1 Management Port , 1 serial port, 1 Type-C port, Power-Button, UID

GPU

Up to 10 single-width GPUs*

Optical drive

External Optical Disk Drive, Optional

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

LCD touchable model, 64M Video Cache

U-Center data center management platform

Security

Intelligent Front Security Bezel

TCM/TPM2.0

Silicon Root of Trust

Two-Factor Authentication

Secure decommissioning function

Power supplies

Up to 4 platinum power supplies, supporting specifications of 850/1300/1600/2000/2400W with N+N redundancy

Supports 4 hot-swappable N+1 redundant fans, allowing optional selection of 8038 or 8056 fans as needed

Standards

CE，UL , FCC，VCCI，CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F) (Operating temperature support varies depending on different configurations. For details, please refer to the detailed product technical documentation description.)

Dimensions

(H×W×D)

2U Height

Without a security bezel: 87.5×447×829mm (3.44×17.60×32.63 in)

With a security bezel: 87.5×447×857.5mm (3.44×17.60×33.76 in)
