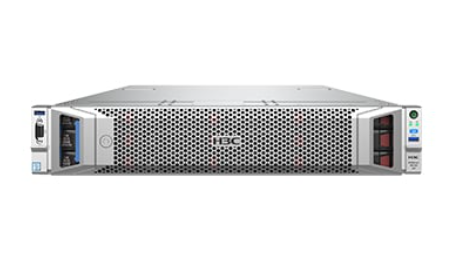

R6700 G3 Front View with Bazel

Computing

4 × Intel® Xeon® Scalable processors

(Up to 28 cores and maximum 205 W power consumption)

Memory

48 × DDR4 DIMMs, 6.0 TB (maximum)

(Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM)

(Up to 24 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

Storage controller

Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

Standard PCIe HBA cards and storage controllers (Optional)

FBWC

8 GB DDR4-2133MHz

Storage

Maximum Front 24SFF + rear 2SFF, Support SAS/SATA HDD/SSD Drives

Maximum 16 front UniBay Slots，Rear 2 x UniBay Slots，Support SAS/SATA/NVMe Drives

SATA M.2 SSDs (Optional)

2 × SD internal slots (Optional)

Network

1 × onboard 1 Gbps management network port

2 × onboard 1 Gbps network port

Support sLOM 4 × 1GE copper ports or 2 × 10GE/2 x 25GE fiber ports, sLOM support NCSI function

Support Standard PCIe 3.0 Ethernet Adapters

Support 10/25/40/100GE/IB/OPA High-performance Ethernet Adapter，

Support FC-HBA SAN Adapter

PCIe slots

11 × PCIe 3.0 slots (one dedicated slot for Ethernet adapter,6 x FH slots,8 x PCIe x16 slots)

Ports

Front VGA connector

Rear VGA connector and serial port(RJ-45)

5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server)

1 × USB 2.0 front connector

SFF Liquid Crystal Display Module (Optional)

GPU

8 × single-slot wide GPU modules

Optical drive

External optical disk drive (Optional)

Management

HDM (with dedicated management port) and H3C FIST, Support LED/LCD screen*diagnostic panel

Security

Support Chassis Intrusion Detection

TPM2.0

Power supply

Platinum 1600W(supports 1+1 redundancy) ,

800W –48V/336V DC power supplies (1+1 redundancy)

Hot swappable fans (supports redundancy)

Standards

CE，UL , FCC，VCCI，EAC, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.

Dimensions (H × W × D)

2U Height

Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in)

With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in)
