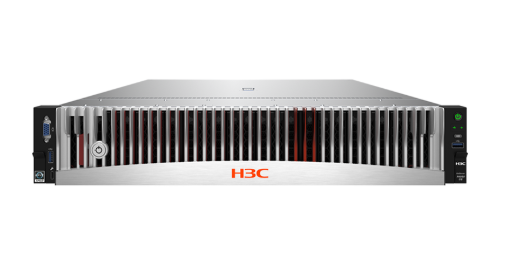

R4950 G6

CPU

2 AMD EPYC 9004 series processors

Up to 128 cores per processor, maximum L3 cache 1152MB, maximum power 400W

Memory

Up to 24 DDR5 memory slots, up to 4800MT/s, supporting RDIMM or 3DS RDIMM, memory capacity up to 6TB*

RAID controller

Optional RAID controller based on standard PCIe slot

Storage

Up to 41* 2.5-inch SATA/SAS hard drives (25 front + 8 mid + 8 rear)

Up to 20* 3.5-inch SATA/SAS hard drives (12 front + 4 mid + 4 rear)

Up to 28 U.2 NVMe SSDs

Up to 2 2280/22110 SATA/NVMe M.2 hard drives

Network

Up to 2 onboard OCP 3.0 NICs + 1 optional OCP 3.0 NIC*

Network adapter based on standard PCIe slot

InfiniBand

Expansion slots

Up to 10 PCIe5.0 standard slots

I/O ports

Front: Left chassis ear (optional): 1 VGA, 1 USB3.0, 1 Type C port. Right chassis ear: 1 USB3.0

Built-in: 1 USB3.0

Rear: 1 VGA, 1 serial port (optional)*, 2 USB3.0, 1 HDM dedicated network port

GPU

Up to 4 double-width or 8 single-width GPU modules

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

Support LCD touchable intelligent management module

Security

Chassis intrusion detection

TCM/TPM security module

CPU built-in dedicated security processor

Power supply

Titanium 1600W/3200W, Platinum 1300W/1600W/2000W/2400W power supply in 1+1 redundancy

Hot-swappable redundant fans

Standards

CE,UL, FCC,VCCI,CB, etc.

Operating temperature

5ºC to 40ºC (41ºF to 104ºF)*

Dimensions

(H×W×D)

2U

Without a security bezel: 87.5x445.4x780 mm (3.44x17.54x30.7 in)

With a security bezel: 87.5x445.4x808 mm (3.44x17.54x31.8 in)
