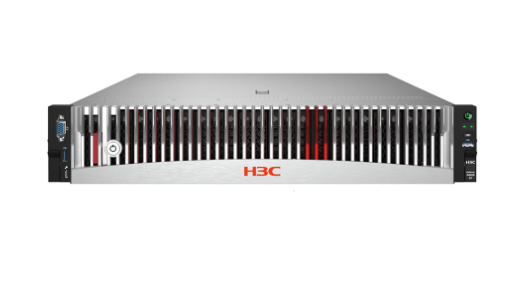

R4900 G7

CPU

1 or 2 Intel® Xeon® 6 Processors

Memory

SP Platform: 32 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 16 DDR5 MRDIMM Slots, 8000MT/s Data Rate

AP Platform: 24 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 24 DDR5 MRDIMM Slots, 8800MT/s Data Rate

Additional Expansion of 24 Memory Slots via CXL*

RAID controller

Support RAID 0/1/5/6/10/50/60, etc., 8GB cache, support Supercapacitor Protection

Storage

29 SAS/SATA Drives

Front 12 LFF bays, Rear 4 LFF bays

Front 25 SFF bays, Rear 4 SFF bays

24 U.2 NVMe Drives, 36 E3.S (1T) or 24 E3.S(2T) SSDs

SATA/NVMe M.2 Kit, DSD Model (2×SD card kit)

Network

1 Onboard 1 Gbps Management Network Port

2 Onboard OCP 3.0 NICs, support Hot Swap and PCIe 5.0

PCIe Standard Slots for Ethernet/IB Adapter

Expansion slots

14 PCIe5.0 Standard Slots*, 2 Onboard OCP 3.0 Slots and 1 Dedicated Mezz Slot, support CXL 2.0

Ports

Standard: 1 Rear VGA Port, 4 USB Ports (1 Front, 2 Rear, 1 Internal)

Optional: Mounting Bracket Kit with 1 front Serial port, 1 VGA port, 1 USB Port;

1 Front Management Port*

GPU

4 Dual-Slot or 12 Single-Slot* GPU Modules

Optical drive

External Optical Disk Drive, Optional

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

Support LCD Touchable Intelligent Management Module

Security

Intelligent Front Security Bezel

Chassis Intrusion Detection

TPM 2.0

Intel SGX2.0

Power supplies

1+1 Redundancy Power Supply

Titanium 1600W/3200W

Platinum 800W/1300W/1600W/2000W/2700W

DC Power Supply

Hot Swappable Redundant Fans

Standards

CE, UL etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

Dimensions

(H×W×D)

2U SP Regular Chassis:

87.5×445.4×800mm (3.44×17.54×31.5 in) (Without a security bezel)

87.5×445.4×828mm (3.44×17.54×32.6 in) (With a security bezel)

2U Front Accelerator Chassis*:

87.5×445.4×900mm (3.44×17.54×35.4 in) (Without a security bezel)

87.5×445.4×928mm (3.44×17.54×36.5 in) (With a security bezel)

2U AP Regular Chassis:

87.5×445.4×850mm (3.44×17.54×31.5 in) (Without a security bezel)

87.5×445.4×878mm (3.44×17.54×32.6 in) (With a security bezel)
