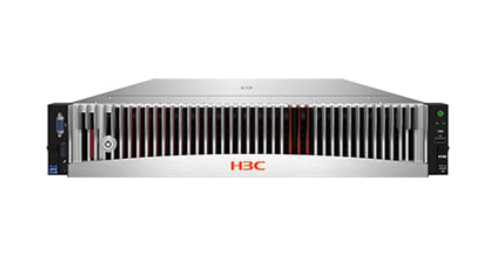

R4900 G6 Ultra

CPU

2×4th Generation Intel®Xeon®Sapphire Rapids / 5th Generation Intel®Xeon® Emerald Rapids SP series

64 Cores for each Processor and 385W power consumption

HBM technology

Chipset

Intel®C741

Memory

32 DDR5 RDIMM Slots, 5600 MT/s Data Rate, 8TB* on 2 CPU Configuration

RAID controller

Dedicated PCIe HBA Controller or Raid Controller

Standard PCIe HBA Controller or Raid Controller

FBWC

8 GB Cache, support Supercapacitor Protection

Storage

29 SAS/SATA Drives

Front 12 LFF bays, Rear 4 LFF bays

Front 25 SFF bays, Rear 4 SFF bays

24 U.2 NVMe Drives, 36 E3.S SSD

SATA/NVMe M.2 Kit, DSD Model (2×SD card kit)

Network

1 Onboard 1Gbps Management Network Port

2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs

PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter, 400GE IB card

Expansion slots

10 PCIe5.0 Standard Slots and 2 Onboard OCP 3.0 Slots; CXL1.1

Ports

Standard: 1 Rear VGA Port, 3 USB 3.0 Ports (1 Front, 2 Rear), 1 USB 2.0 Internal Port, 1 RJ45 Management Port

Optional: 1 Rear Serial Port, Mounting Bracket Kit with 1 Type-C Port, 1 VGA Port, 1 USB 2.0 Port

GPU

4 Dual-Slot or 8 Single-Slot GPU Modules

Optical drive

External Optical Disk Drive, Optional

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

Support LCD Touchable Intelligent Management Module

Security

Intelligent Front Security Bezel

Chassis Intrusion Detection

TPM 2.0

2FA for HDM

Intel SGX2.0 & PFR3.0

Power supplies

1+1 Redundancy Power Supply

Titanium 1600W/3200W

Platinum 800W/1300W/1600W/2000W/2700W

DC Power Supply

Hot Swappable Redundant Fans

Standards

CE, UL, FCC, VCCI, CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

Dimensions

(H×W×D)

2U Height

87.5×445.4×780mm (3.44×17.54×30.7 in) (Without a security bezel)

87.5×445.4×808mm (3.44×17.54×31.8 in) (With a security bezel)
