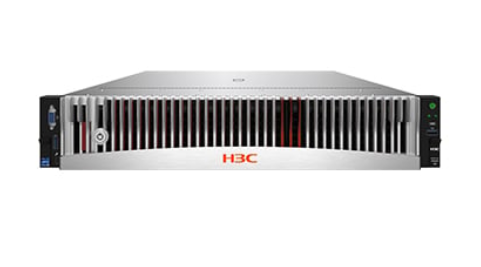

R4900 G6
|
CPU |
2×4th Generation Intel®Xeon®Sapphire Rapids / 5th Generation Intel®Xeon®Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption HBM technology |
|
Chipset |
Inte®C741 |
|
Memory |
32 DDR5 RDIMM Slots, 5600 MT/s Data Rate, 8TB* on 2 CPU Configuration Additional 16 Expansion Memory Slots via CXL1* |
|
RAID controller |
Dedicated PCIe HBA Controller or Raid Controller Standard PCIe HBA Controller or Raid Controller |
|
FBWC |
8 GB Cache, support Supercapacitor Protection |
|
Storage |
29 SAS/SATA Drives Front 12 LFF bays, Rear 4 LFF bays Front 25 SFF bays, Rear 4 SFF bays 24 U.2 NVMe Drives SATA/NVMe M.2 Kit, DSD Model (2×SD card kit) |
|
Network |
1 Onboard 1Gbps Management Network Port 2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter |
|
Expansion slots |
10 PCIe Standard Slots (6 PCIe5.0 and 4 PCIe4.0) and 2 Onboard OCP 3.0 Slots; CXL1.1 Supports Full-OCP architecture and can support up to 8 OCP3.0 slots* |
|
Ports |
Standard: 1 Rear VGA Port, 3 USB 3.0 Ports (1 Front, 2 Rear), 1 USB 2.0 Internal Port, 1 RJ45 Management Port Optional: 1 Rear Serial Port, Mounting Bracket Kit with 1 Type-C Port, 1 VGA Port, 1 USB 2.0 Port |
|
GPU |
4 Dual-Slot* or 8 Single-Slot GPU Modules |
|
Optical drive |
External Optical Disk Drive, Optional |
|
Management |
H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD Touchable Intelligent Management Module |
|
Security |
Intelligent Front Security Bezel Chassis Intrusion Detection TPM 2.0 2FA for HDM Intel SGX2.0 |
|
Power supplies |
1+1 Redundancy Power Supply Titanium 1600W/3200W Platinum 800W/1300W/1600W/2000W/2700W DC Power Supply Hot Swappable Redundant Fans |
|
Standards |
CE, UL, FCC, VCCI, CB, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) |
|
Dimensions (H×W×D) |
2U Height 87.5×445.4×780mm (3.44×17.54×30.7 in) (Without a security bezel) 87.5×445.4×808mm (3.44×17.54×31.8 in) (With a security bezel) |
