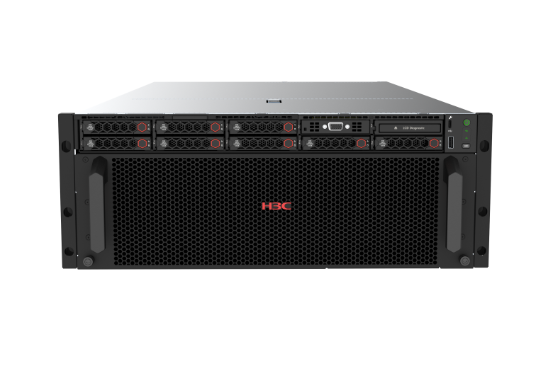

R4500 G6

CPU

2 4th Generation Intel^® Xeon^® Sapphire Rapids/5th Generation Intel^® Xeon^® Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption

Chipset

Intel^®C741

Memory

32× DDR5 RDIMMs (maximum) with up to 5600 MT/s Data Rate

Storage controller

Standard PCIe HBA Controller or Raid Controller

Supports NVMe RAID

FBWC

8 GB Cache

Supports Supercapacitor protection

Storage

Supports SAS/SATA/NVMe U.2

60LFF+8SFF/2SFF; optional support for 12SFF and 12 NVMe SSD*

Supports 2 M.2 or Micro SD as boot disk

Network

1 × onboard 1 Gbps HDM management Ethernet port

2 × OCP3.0 Ethernet adapter, supporting NCSI function and hot-swap

PCIe Standard Slots for 1G/10G/25G/100G/200Gb/400G Ethernet Adapter or 100/200/400Gb InfiniBand card

PCIe slots

Up to 6 x PCIe standard slots (5 × PCIe 5.0, 1 × PCIe 4.0), 2 ×OCP3.0 Slots

Ports

Standard 1 VGA connector (optional 2, 1 front, 1 rear) and optional 1 serial port

4 × USB connectors (1 front USB 2.0, 1 internal USB 2.0, 2 rear USB 3.0,), 1 ×Type C (HDM dedicated)

Optical drive

External USB optical drive

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

LCD touchable model (Optional)

U-Center data center management platform(Optional)

Security

Supports Chassis Intrusion Detection

TCM/TPM2.0

Dual-factor authentication

Power supplies

Optional 2 or 4 hot swapping power supplies of 1300/1600/2000/2400W, supporting 1+1 or 2+2 redundancy

Standard 5 fans for storage unit, 8 fans for compute unit, Hot swappable N+1 redundant Fans

Standards

CE, UL, FCC, VCCI, CB, etc.

Operating temperature

Operating temperature: 5~40ºC (41ºF to 104ºF)

Storage Temperature: -40~70ºC (-41ºF to 158ºF)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device

Dimensions

(H×W×D)

4U Height

Chassis size (Without ears) (length×width×height): 900mm×448mm×174.8mm (35.43 ×17.63×6.88 in)
