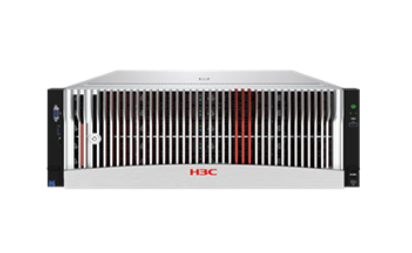

R4300 G7

CPU

Support 1 to 2 Intel® Xeon® 6 processors, with a maximum power consumption of 350W for each processor, and supports 4UPI

Memory

Support 32 DDR5 memory slots, with a maximum speed of 6400MT/s

Support 16 MRDIMM slots, with a maximum speed of up to 8000MT/s

Storage controller

Support expansion through standard PCIe slots, supports1 built-in Mezz form factor RAID controller

Optional 4GB/8GB cache, supports power fail safeguard

Support RAID 0/1/10/5/6/50/60/1E/Simple Volume

Storage

Support 44 3.5 inch SAS/SATA drive*

Support 4 2.5 inch SAS/SATA/NVMe drive

Support 18 NVMe U.2 drives*

Support up to 8 rear E1.S/E3.S drives*

Support for SATA/NVMe M.2 expansion options

Network

1 x onboard 1 Gbps HDM management Ethernet port

2 x OCP3.0 Ethernet adapter support NCSI function and hot-swap

Supports PCIe Standard Slots for 10/25/100/200Gb Ethernet Adapter or 100/200/400Gb InfiniBand card

PCIe slots

Up to 10 x PCIe 5.0 standard slots, 2 x dedicated OCP3.0 Slots, 1 x dedicated Mezz Slot

Ports

Front: 1 VGA, 1 USB3.0 + 1 USB2.0, 1 Type C interface

Built-in: 1 USB

Rear: 1 VGA, 2 USB3.0, 1 dedicated HDM network port, optional 1 serial port

GPU

Up to 2 double-width or 10 single-width GPUs*

Optical drive

External optical drive

Management

HDM 3 agentless management tool (with rear independent network port and front dedicated Type C port) and H3C UniSystem management software

U-Center data center management platform (Optional)

Security

Support Chassis Intrusion Detection

TCM/TPM security module (Optional)

Power supply and cooling

Optional 1300W/1600W/2000W power supply

Platinum/Titanium optional, CQC31-461288 certified power supply level V

Support 4 8056/8038 hot-swappable fans with N+1

Standards

CE, UL, FCC, VCCI, CB, etc.

Operating temperature

Operating temperature: 5°C to 40°C (41°F to 104°F)

Storage Temperature: -40~85°C (-41°F to 185°F)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for

the device

Dimensions

(H×W×D)

4U Height

Without a security bezel: 174.8×447×781 mm (6.88×17.60×30.75 in)

With a security bezel: 174.8×447× 809 mm (6.88×17.60×31.85 in)
