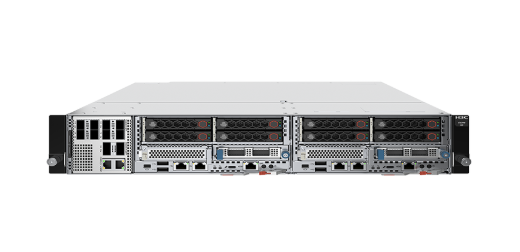

E3300 G6

Form factor

Front maintenance design, 2U2N configuration, compliant with OTII-E technical standards

CPU

Up to 1x Intel Eagle Stream processor per node (supporting SPR-EE, SPR, and EMR processors)

· Up to 225 W per processor

· Up to 32 cores per processor

Chipset

Intel® C741 chipset

Memory

Up to 8 x DDR5 memory slots per node, with a speed up to 5600 MT/s, 1DPC

Raid controllers

· Onboard storage controller, supporting SATA RAID 0, 1, 10, and 5

· (Optional) HBA cards and storage controllers in standard PCIe slots, with support for supercapacitors

Storage

· Supports either 1x onboard SATA M.2 module or 1 x 4 NVMe M.2 module per node

· Supports up to 4 x 2.5-inch SAS/SATA/U.2 NVMe SSD/HDD drives per node

Network

· Each node has 2 onboard GE network ports

· Each node supports 1 standard PCIe slot, compatible with x16 HHHL cards

· Each node supports 1 hot swappable OCP 3.0 network adapter

· Each node supports 1 Mezzanine card slot

Switching module

Supports 1 switch board, provides 8 x 10GE and 2 x 40GE network ports, 1x GE management network port, 1 x serial port

Ports

Supports 1x mini DP, 2 x USB 3.0 ports, 1x dedicated HDM management port

GPU

Supports 1xLP GPU card per node

Optical drive

External optical drives

Management

H3C HDM standard license, iFIST (embedded), H3C advanced feature package license (optional, requires licenses), H3C UniSystem (requires download)

Support LCD touchable intelligent management module

Security

Chassis intrusion detection

TPM 2.0 and Intel SGX2.0

Power Supply

2 x 1000W Titanium M-CRPS power supplies (1+1 redundancy), supporting hot swapping and rear maintenance

Supports 4 x 8038 and 8056 hot-swappable fan modules in redundancy, support rear maintenance.

Standards

CE, UL etc.

Operating temperature

Long-term:0°C to 50°C (32°F to 122°F);

Short-term: -5°C to 55°C (23°F to 131°F)

Humidity: long-term: 5% to 85%; short-term:5% to 90%

EMC:CLASS A

Dimensions (H × W × D)

87.5 × 440.0 × 470.0 mm (3.44 × 17.32 × 18.50 in)
