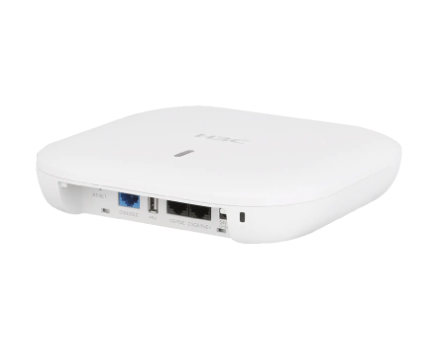

9801A23V

Weight

0.94Kg

Dimensions (W × D × H)

215mm X 215mm X 45mm (without mounting brackets)

Interface

1 x 100/1000M/2.5G Ethernet, RJ-45, PoE input

1 x 100/1000M Ethernet, RJ-45, PoE output

Console port

1 x Management console port (RJ-45)

USB port

1 x USB 2.0 at 2.5W

PoE input

1 x 100/1000M/2.5G Ethernet, 802.3at/af

PoE output

1 x 100/1000M Ethernet, 802.3af

Local power supply

54V DC (center-positive circular plug) power adapter (sold separately)

Antenna type

Built-in omni-directional antenna

Antenna Gain

5GHz peak gain: 6dBi

2.4GHz peak gain: 6dBi

Note: The equivalent antenna gain is 5dBi in 5GHz and 5dBi in 2.4GHz

Built-in IoT module

BLE4.2

Frequency bands

2.400 to 2.4835GHz ISM

5.150 to 5.250GHz U-NII-1

5.250 to 5.350GHz U-NII-2A

5.470 to 5.725GHz U-NII-2C

5.725 to 5.850GHz U-NII-3/ISM

Note: The available bands and channels are dependent on the configured regulatory domain (country)

Modulation technology

802.11b: Direct-sequence spread spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

802.11ax: Orthogonal frequency-division multiple access (OFDMA)

Modulation mode

11b: BPSK, QPSK, CCK

11a/g/n: BPSK, QPSK, 16QAM, 64QAM

11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Data rates (Mbps)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40)

802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160)

802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160)

Maximum transmit power

5GHz: 23 dBm

2.4GHz: 23 dBm

Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

Adjustable power granularity

Configurable in increments of 1dBm

Reset button

Restoration to factory default, AP mode control(Cloudap/Fitap)

Kensington

Kensington security slot

Installation

Wall mounting/ceiling mounting, the mounting bracket has been preinstalled on the back of the AP

Indicators (LED)

Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system

Temperature

Operating temperature: +0°C to +50°C

Storage temperature: –40°C to +70°C

Humidity

Operating humidity: 5% to 95% (non-condensing)

Storage humidity: 5% to 95% (non-condensing)

Protection class

IP42

Surge protection

Common Mode：4KV

Overall power consumption

34W (including PSE and USB)

16.5W (excluding PSE and USB)

Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues

Safety standards

IEC/EN 62368-1

GB 4943.1

SRRC

EMC standards

EN 301 489-1

EN 301 489-3

EN 301 489-17

EN 60601-1-2

EN 55032

EN 55035

CISPR 32

CISPR 35

AS/NZS CISPR32

ICES-003 Issue 7

GB/T 9254.1

GB/T 9254.2

GB 17625.1

GB 17625.2

IEC/EN 61000-4-2

IEC/EN 61000-4-3

IEC/EN 61000-4-4

IEC/EN 61000-4-5

IEC/EN 61000-4-6

IEC/EN 61000-4-8

IEC/EN 61000-4-11

IEC/EN 61000-3-2

IEC/EN 61000-3-3

Radio standards

ETSI EN 300 328

ETSI EN 301 893

ETSI EN 300 440

FCC Part 15E

RoHS standards

DIRECTIVE 2011/65/EU

(EU) 2015/863

Health standards

EN 50385:2017

EN IEC 62311:2020

MTBF (25°C)

419785 hours
