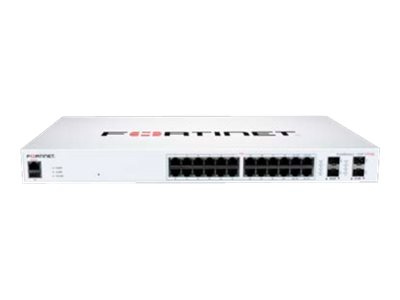

FS-124F-POE
FortiSwitch-124F-POE L2+ managed POE switch with 24GE ports, 12 of which are POE+, 4 SFP+, max 185W limit and smart fan temperature control
Description
| Product Description | Fortinet FortiSwitch 124F-POE - switch - 12 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 12 ports - Managed |
| Enclosure Type | Side to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 185 W |
| Performance | Switching capacity: 128 Gbps Packets per second: 190 Mpps Latency: < 1 µs |
| Capacity | VLANs supported: 4000 Link aggregation groups: 8 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Remote Management Protocol | SSH, Telnet, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3 |
| Features | 2MB packet buffer, auto-negotiation, auto-uplink (auto MDI/MDI-X), STP support, MSTP support, RSTP support, STP BPDU Guard, STP Root Guard, VLAN Tagging, LACP, flow control, Energy Efficient Ethernet, Storm Control, DHCP relay, IGMP snooping, port mirroring, 802.1x authentication, LLDP support, DHCP snooping, DAI, LLDP-MED, QoS, SNTP support, TFTP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z, IEEE 802.3bz, IEEE 802.1ab (LLDP), IEEE 802.1p |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 33 cm x 26 cm x 4.4 cm |
| Weight | 3.56 kg |
