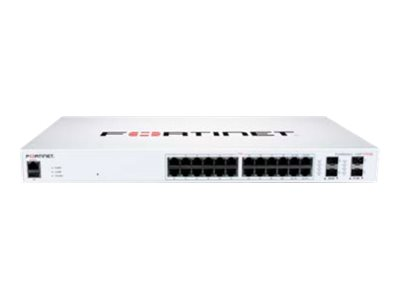

FS-124F-FPOE
FortiSwitch-124F-FPOE L2+ managed POE switch with 24GE + 4SFP+, 24port POE with max 370W limit and smart fan temperature control
Description
| Product Description | Fortinet FortiSwitch 124F-FPOE - switch - 24 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Side to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps Packets per second: 190 Mpps Latency: < 1 µs |
| Capacity | VLANs supported: 4000 Link aggregation groups: 8 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DAI, STP Root Guard, LLDP support, DHCP relay, LACP, Energy Efficient Ethernet, 2MB packet buffer, 802.1x authentication, Storm Control, LLDP-MED, STP BPDU Guard, VLAN Tagging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 33 cm x 26 cm x 4.4 cm |
| Weight | 3.82 kg |
