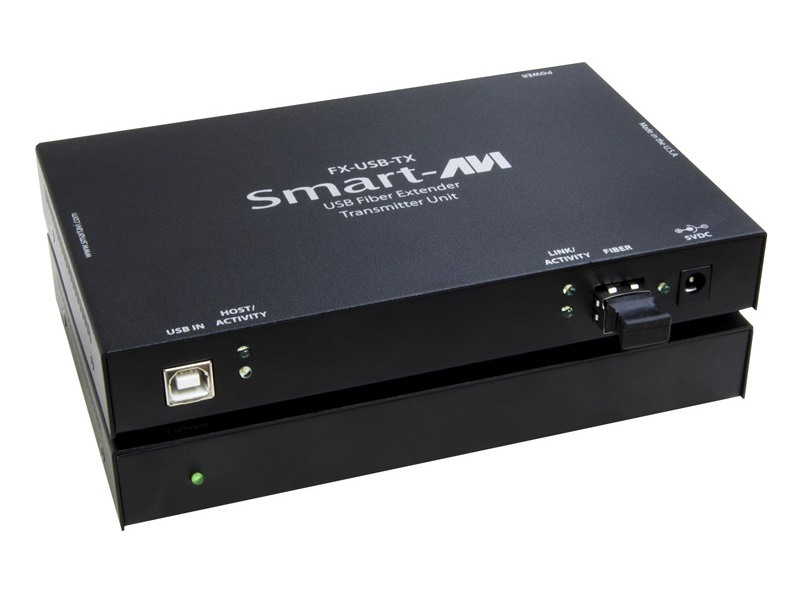

FX-USB
USB 2.0 Extender up to 1,500 feet over Fiber Optic Cable
Description
USBFiber
| Signal Type | EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) |
| Input Interface (TX) | (1) USB Type B (Female) |
| Output Interface (RX) | (4) USB Type A (Female) |
| Fiber Type | Single, multi mode |
| Connector Type | Duplex LC |
| Wavelength | 1310 nm/1550 nm (Dual wavelength) |
| Data Rate | 5 Gbps (2.5 Gbps per single wavelength) |
| Transmission Power | -5 dB Min. |
| Receiver Sensitivity | -21 dB Max |
| Distance | 500 m Max. |
| Other | |
|---|---|
| Power | External 100-240 VAC/5VDC4A @20W |
| Dimensions | 4 in W x 1 in H x 3 in D |
| Weight | 2.0 lbs. (0.9 kg) |
| Operating Temp. | 0-55 °C (32-131°F) |
| Storage Temp. | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
