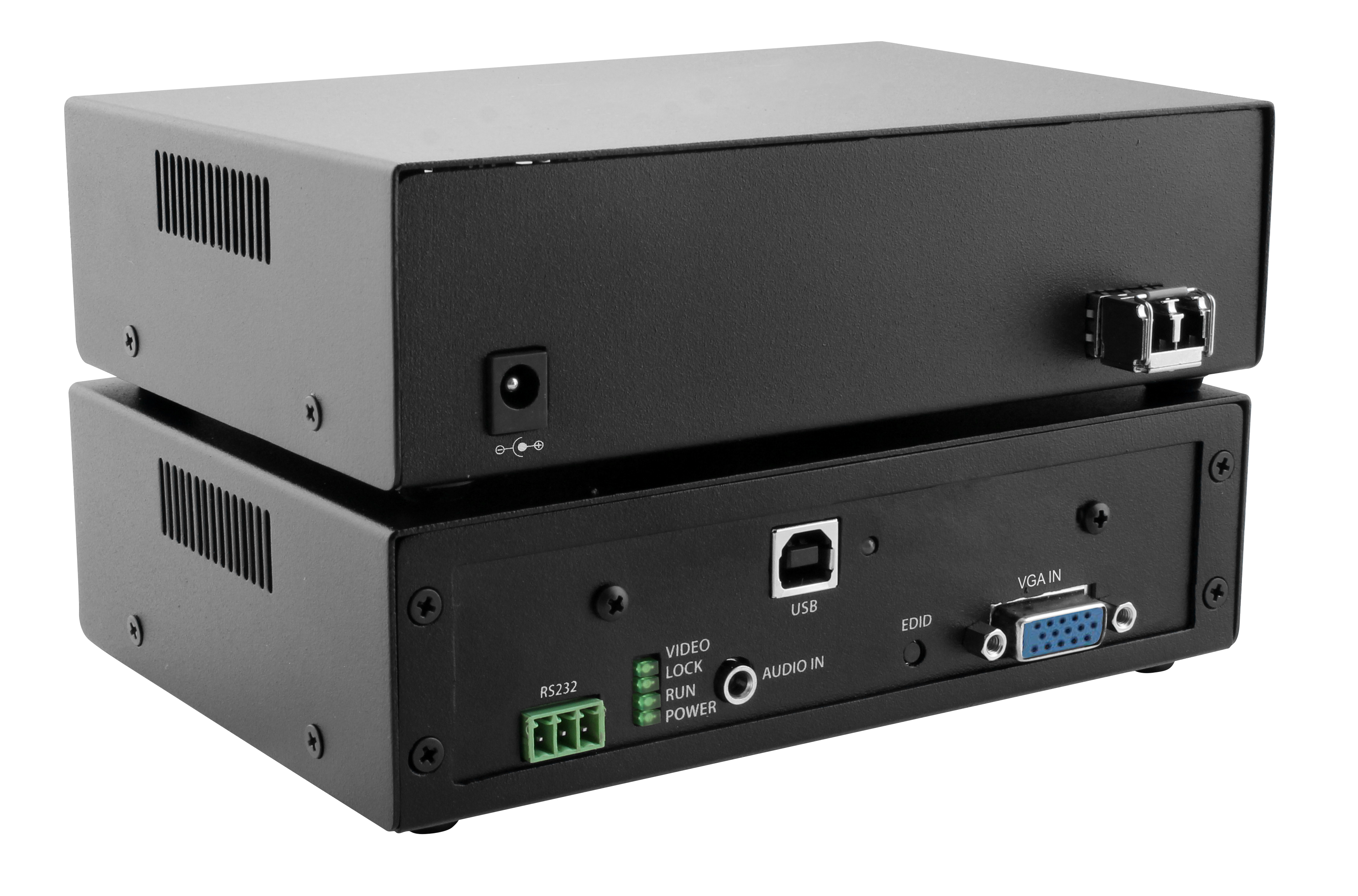

FVX-3000-Pro
For the extension of any USB keyboard and mouse, stereo audio, VGA, and RS-232 signal up to 10 km (6.2 miles).
Description
| Video Data | |
|---|---|
| Format | VGA Female |
| Input | (1) VGA Female |
| Output | (1) VGA Female |
| Max. Pixel Clock | 165 MHz |
| Max. Data Rate | 6.75 Gbps |
| Resolution | Up to 1080p (1920×1080 @ 60Hz) |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Audio | |
| Input | (1) 3.5mm stereo audio jack |
| Output | (1) 3.5mm stereo audio jack |
| USB: | |
| Signaling | USB Keyboard-Mouse Only |
| Input | (1) USB Type-B |
| Output | (2) USB Type A |
| RS-232: | |
| Signal Direction | Unidirectional |
| Max. Baud Rate | 115200bps (self-adaptive) |
| Data Bits | 8 |
| OTHER: | |
| Power Adaptor | 12VDC2A |
| Dimensions | 6.25” W x 1.875” H x 5.0” D |
| Weight (TX & RX) | 1.45 lbs (0.725 lbs per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Fiber Interface & Type | LC Single-Mode Fiber |
| Transmission Distance | Up to 10km (6.2 miles) |
| Working Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 149 °F (-20 to 65°C) |
| Working Humidity | Up to 85% RH (no condensation) |
| Storage Humidity | Up to 90% RH (no condensation) |
