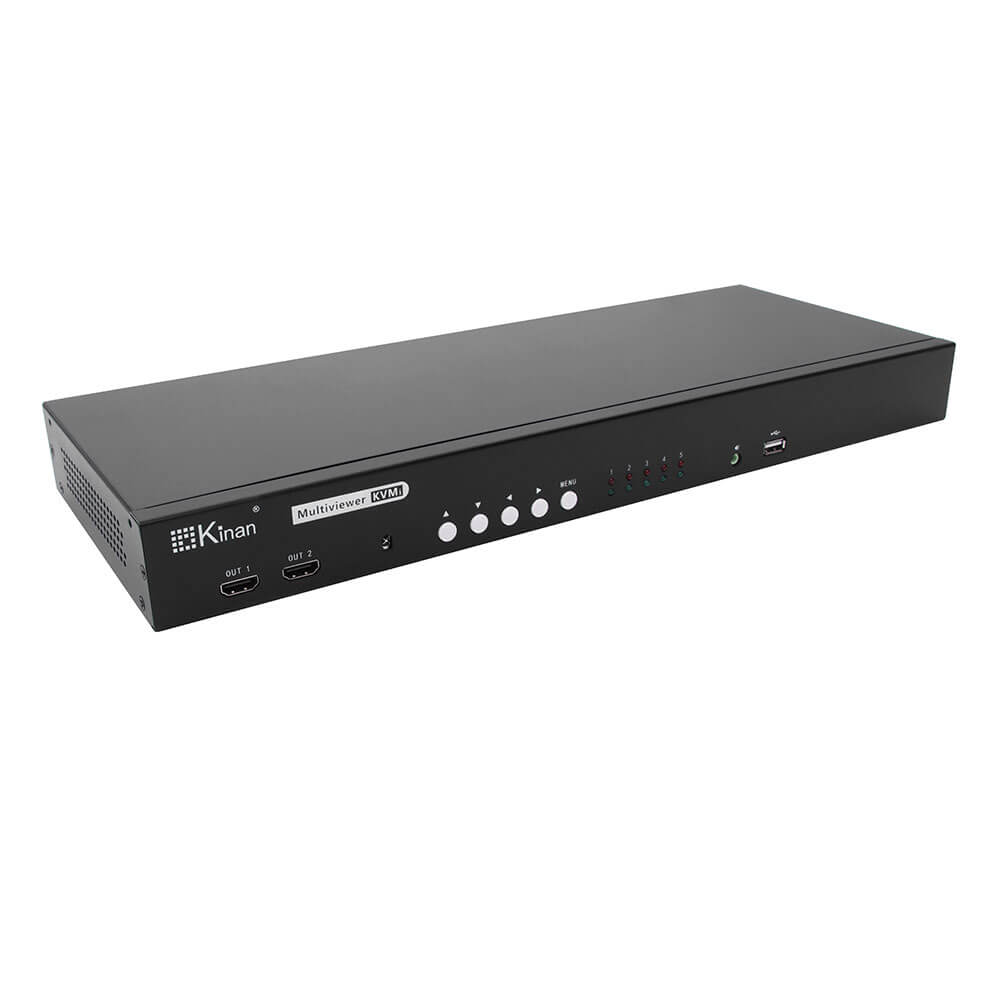

MH2415
5 Port USB HDMI Multi-View KVM Switch（Discontinued)
Description
| Model No. | MH2415 | ||
| Computer Connections | 5 | ||
| Port Selection | Front panel pushbuttons, keyboard hotkeys, mouse wheel, On-Screen Display (OSD) |
||
| Display Mode | Quad View, Triple View, Dual View, Full Screen, Picture in Picture (PiP) |
||
| Connectors | Console Ports | Display | 2x HDMI type A |
| Keyboard/Mouse | 2x USB type A (White) | ||
| Mic | 1x Min Stereo Audio Jack (Pink) | ||
| Speaker | 2x Min Stereo Audio Jack (Green) | ||
| KVM Ports | Display | 4x HDMI type A, 1x DisplayPort | |
| Keyboard/Mouse | 5x USB type (White) | ||
| Mic | 5x Min Stereo Audio Jack (Pink) | ||
| Speaker | 5x Min Stereo Audio Jack (Green) | ||
| USB2.0 Port | 2x USB type A (White) | ||
| Upgrade Port | 1x Micro-USB | ||
| Switch | Selected | 5x Pushbuttons | |
| LEDs | Online | 5 (Red) | |
| Selected | 5 (Green) | ||
| Input Power Rating | 100V-240Vac, 50-60Hz, <1.5A | ||
| Video | 3840×2160 @ 60 Hz | ||
| Power Consumption | 10W | ||
| Environmental | Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-60℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 2.35kg | ||
| Dimensions (L x W x H) | 440 mm x 166 mm x 44mm | ||
