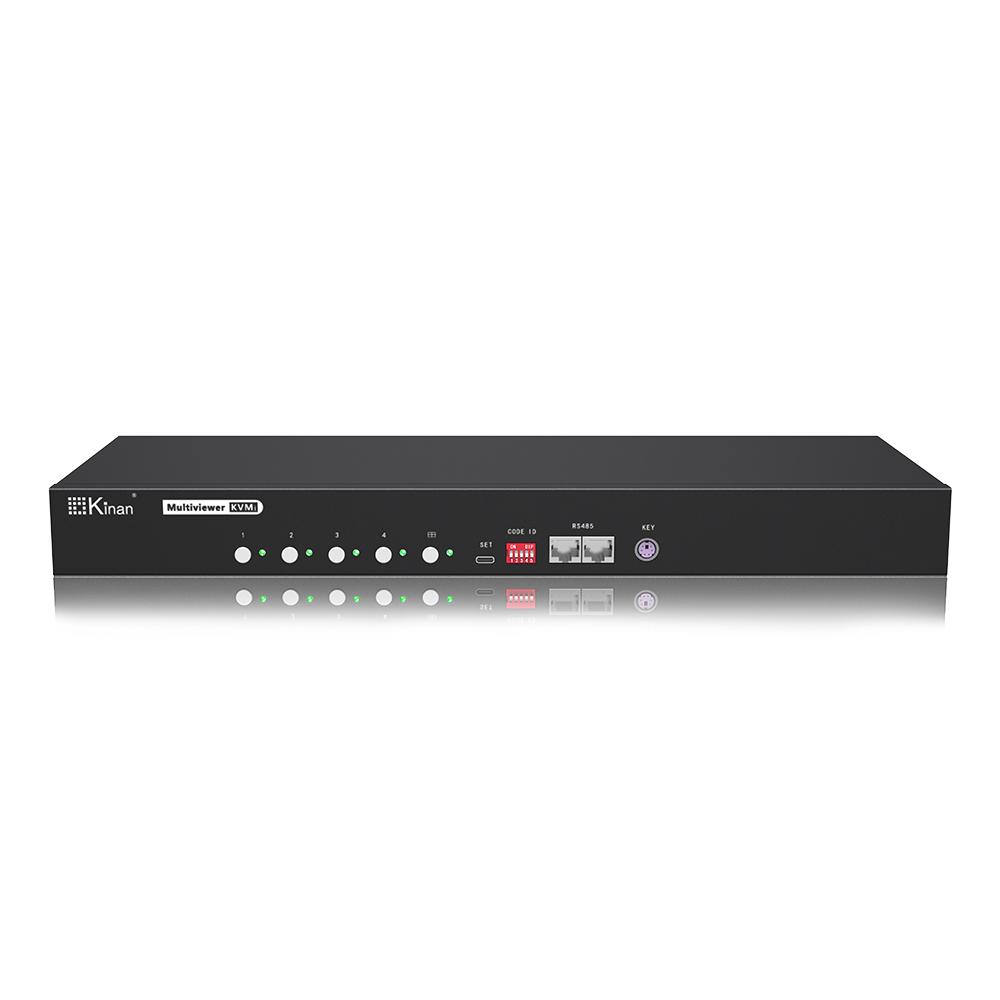

MH2404
4 Port USB HDMI Multi-View KVM Switch
Description
| Model No. | MH2404 | ||
| Direct connection number | 4 | ||
| Maximum number of connections | 16 | ||
| Port selection | Pushbuttons, hotkeys, mouse | ||
| Display Mode | Quad-view mode, Single-view mode |
||
| Connectors | Console Ports | Display | 1 * HDMI type A |
| Keyboard/Mouse | 2 * USB type A (White) | ||
| Audio Output | 1 * Min stereo jack (Pink) | ||
| KVM Ports | Display | 4 * HDMI type A | |
| Keyboard/Mouse | 4 * USB type B | ||
| Audio Input | 4 * Min stereo jack (Pink) | ||
| USB2.0 | 1 * USB type A (White) | ||
| LEDs | Selected | 5* Green) | |
| Switch | Port selected | 4 * Pushbutton | |
| Mode selection | 1 * Pushbutton | ||
| Input Power Rating | 100V-240Vac, 50-60Hz , <1.5A | ||
| Video |
3840×2160 @60Hz
2560×1440@60Hz
2048×2048@60Hz
|
||
| Power Consumption | 20W | ||
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60℃ | ||
| Humidity | 0-80%RH,Non-condensing | ||
| Net Weight | 2.4kg | ||
| Product Dimensions (W × D × H) |
440 mm *166 mm *44mm | ||
