LS3701

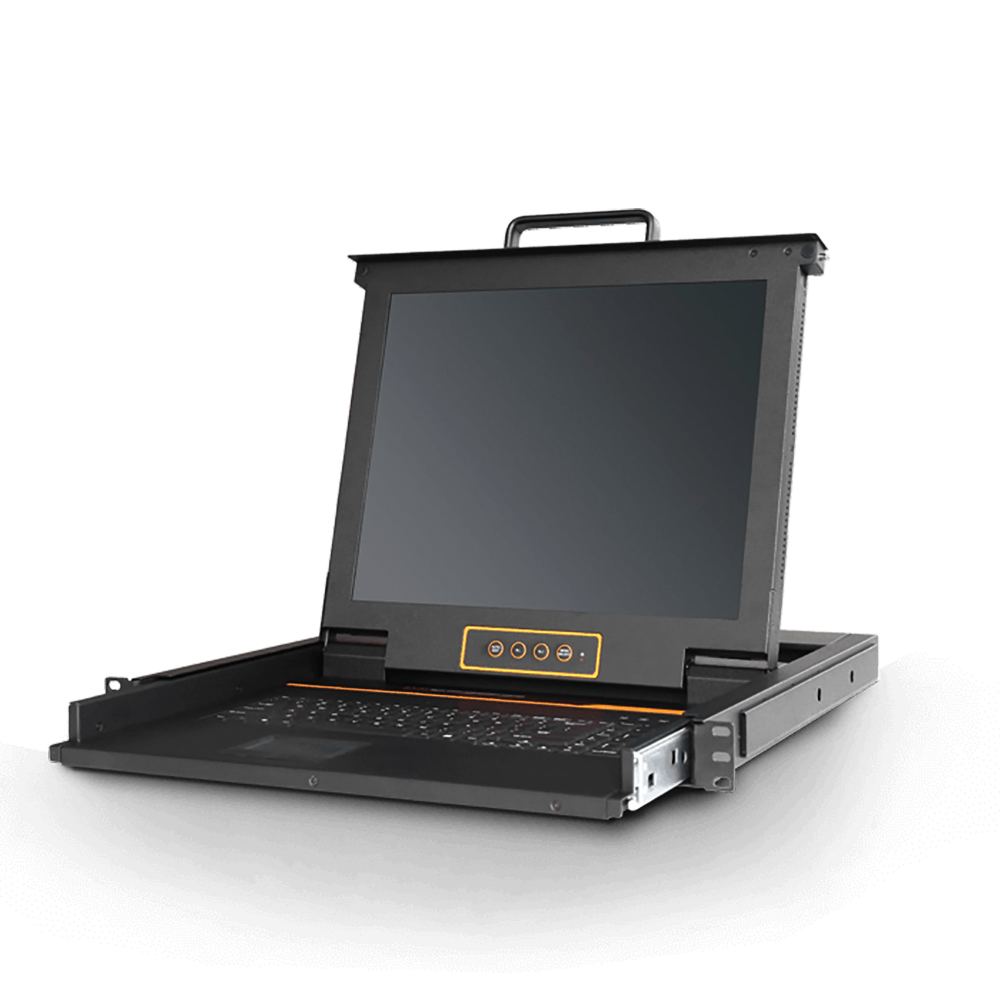

1U Rack Mount Console with 17in. LCD (DVI / VGA)
Description
| Model | LS3701 | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17″ | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points / inch,(40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Video Inputs | DVI, VGA | |
| Power input rating | 100V-240Vac , 50-60Hz , <1.5A | |
| Power consumption | 13W | |
| Operating temperature | 0 ~ 50 ℃ | |
| Store temperature | -20 ~ 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| N.W. | 11.7 kg | |
| Mounting distance | 460~790mm ( L=420mm) Mounting rails can be customized for other mounting distance. |
|
| Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V— -72Vdc | |
| Optional power input | 20-30Vdc | |
