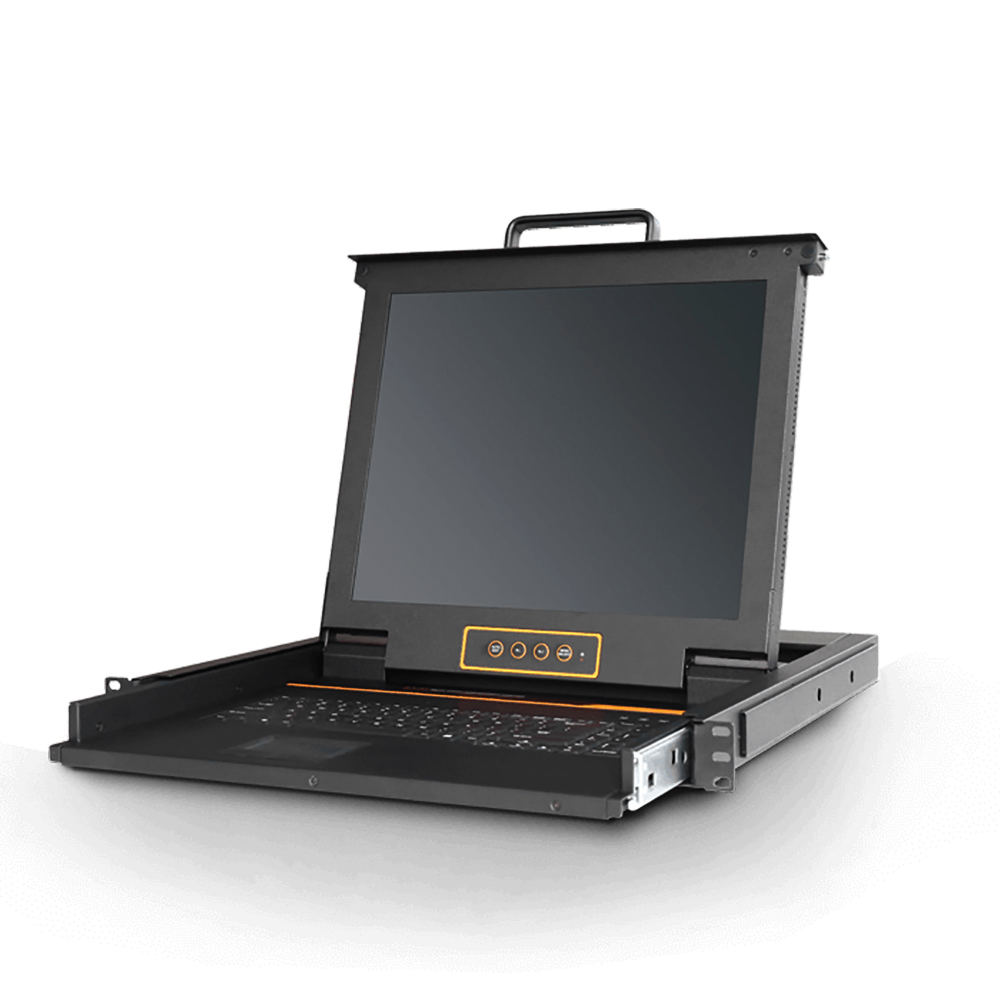

LS2701
17" Rack LCD Console
Description
Model | LS2701 | |
Computer Connections | Direct | 1 |
Max | 1 | |
Port emulation | Keyboard, mouse | PS/2, USB |
LCD monitor | LCD model | SXGA TFT |
View area | 17 " | |
Optimum resolution | 1280×1024@60Hz | |
Display color | 16.7 M | |
Brightness | 250cd/m² (T y p) | |
Contrast ratio | 1000: 1 (T y p) | |
Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
Touchpad with Scroll wheel | Support scroll wheel function | |
Keyboard | 99 keys (82 keys main keyboard + 17 independent small numeric keyboard) |
|
Input power | 100V-240Vac, 50-60Hz, <1.5A | |
Power consumption | 13W | |
Operating temperature | 0— 50 ℃ | |
Store temperature | -20 — 60 ℃ | |
Humidity | 0~80% RH, non-condensing | |
Net weight | 11.7 kg | |
Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
Package dimension (W × D × H) | 765mm×615mm×185mm |
