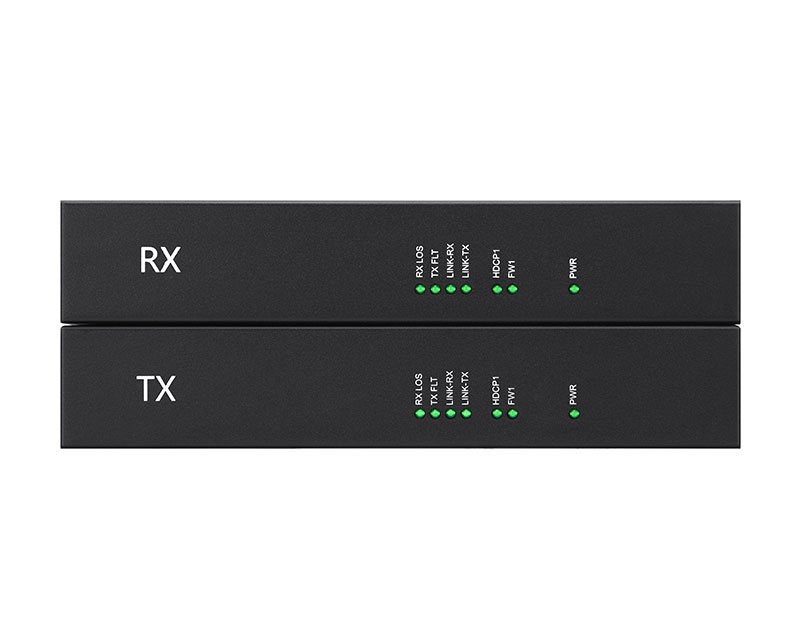

KFH101S
USB HDMI over Fiber KVM Extender-10km
Description
| Model No. | KFH101S_TX | KFH101S_RX | |
| Connector | HDMI Input | 1 | NA |
| HDMI Output | 1 | 1 | |
| Power | 12V | 12V | |
| Fiber Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5MM Stereo Jack (Pink) | 3.5MM Stereo Jack (Pink) | |
| Speaker | 3.5MM Stereo Jack (Green) | 3.5MM Stereo Jack (Green) | |
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 4K@60Hz (YCbCr 4:2:0) | ||
| Connection Cable | Fiber cable | ||
| Power Input | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 11.5W | 10.5W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.8kg | 0.8kg | |
| Product Dimension (W × D × H) |
214 mm x 113.5 mm x 44mm | ||
| Package Dimension (W × D × H) |
260 mm x 102 mm x 179mm | ||
