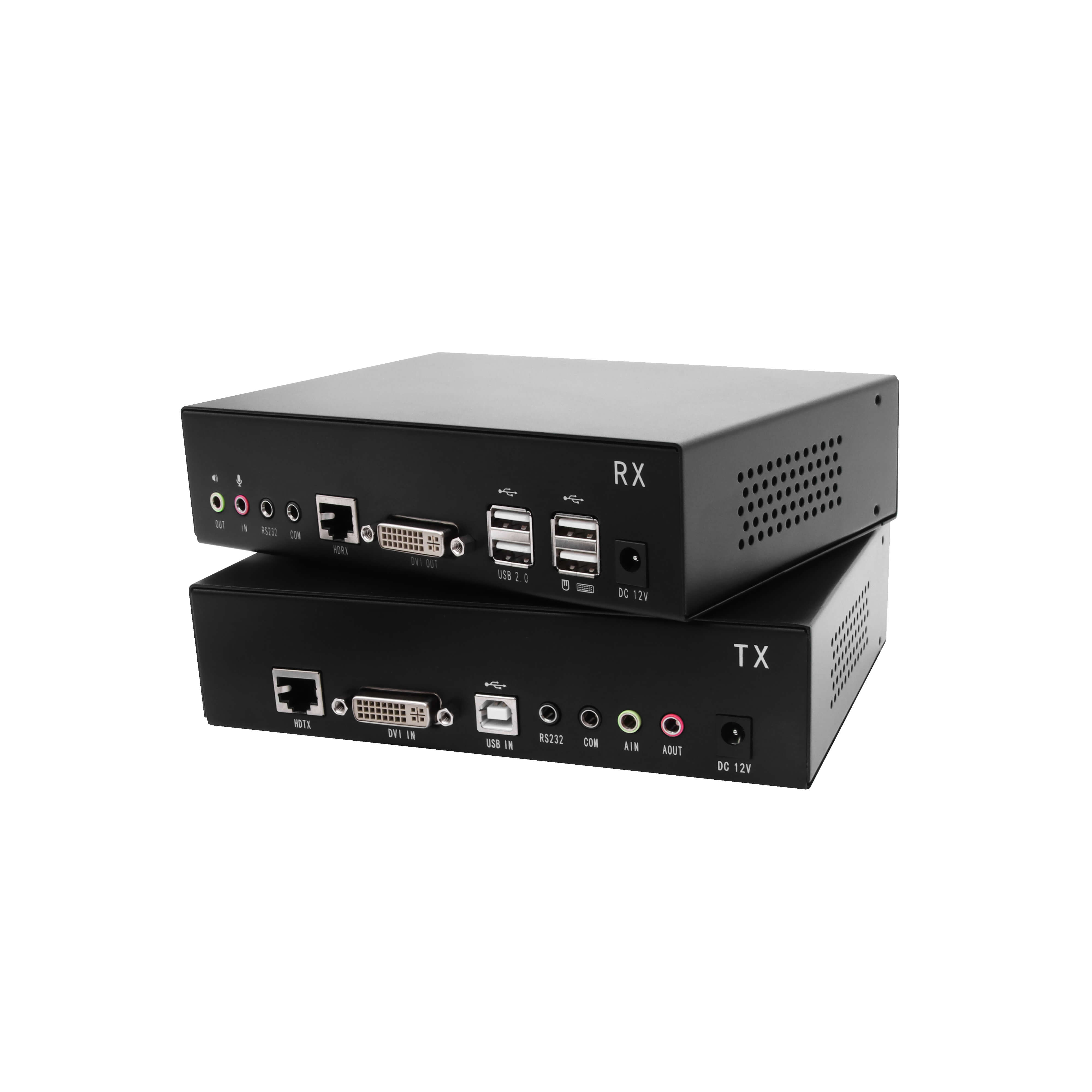

KED101S
USB DVI OVER CAT5E & CAT6 KVM EXTENDER
Description
| Model | KED101S (TX) | KED101S (RX) | |
| Connector | DVI Input | 1 | NA |
| DVI Output | NA | 1 | |
| Power | 12V | 12V | |
| Network | RJ45 x1 | RJ45 x 1 | |
| Microphone | 3.5MM Stereo Jack (pink) x1 |
3.5MM Stereo Jack (pink) x1 | |
| Speaker | 3.5MM Stereo Jack (green) x1 |
3.5MM Stereo Jack (green) x1 |
|
| USB | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 1920×1200 @ 60 Hz | ||
| Cable | CAT 5E / 6 | ||
| I/R Value | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 4W | 7W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Net Weight (kg) | 0.66 kg | 0.66kg | |
| Product Dimension (W × D × H) |
180mmx122mmx44mm | ||
| Package Dimension (W × D × H) |
260 mmx179 mm x102mm | ||
