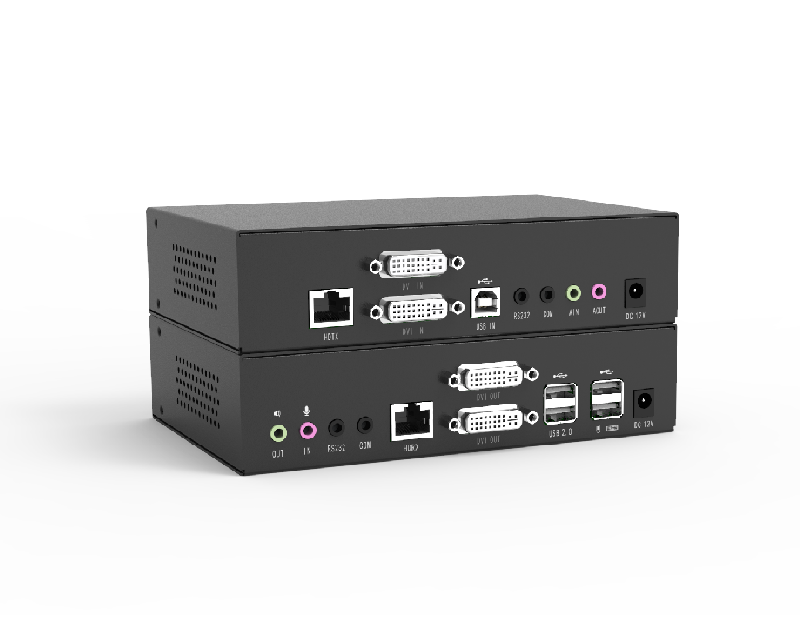

KED202S
USB DVI Dual View OVER CAT5E & CAT6 KVM EXTENDER
Description
| Model No. | KED202S_TX | KED202S_RX | |
| Connectors | DVI Input | 2 | NA |
| DVI Output | NA | 2 | |
| Power | 12V | 12V | |
| Network Port | RJ45 x1 | RJ45 x 1 | |
| Mic | 3.5MM Stereo Jack (pink) |
3.5MM Stereo Jack (pink) |
|
| Speaker | 3.5MM Stereo Jack (green) | 3.5MM Stereo Jack (green) | |
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 1920 X 1200@ 60 Hz (1080P) | ||
| Connecting cable | CAT 5E / 6 | ||
| Power Input | DC12V / 2A | DC12V / 2A | |
| Power consumption | 6.5W | 10.5W | |
| Working Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-Condensing | ||
| Material | Metal | ||
| N.W. (kg) | 0.73 kg | 0.73 kg | |
| Dimension (W × D × H) |
180 mmx 122mm x 44mm | ||
| Package Dimension (W × D × H) |
260 mmx 179 mm x 102mm | ||
