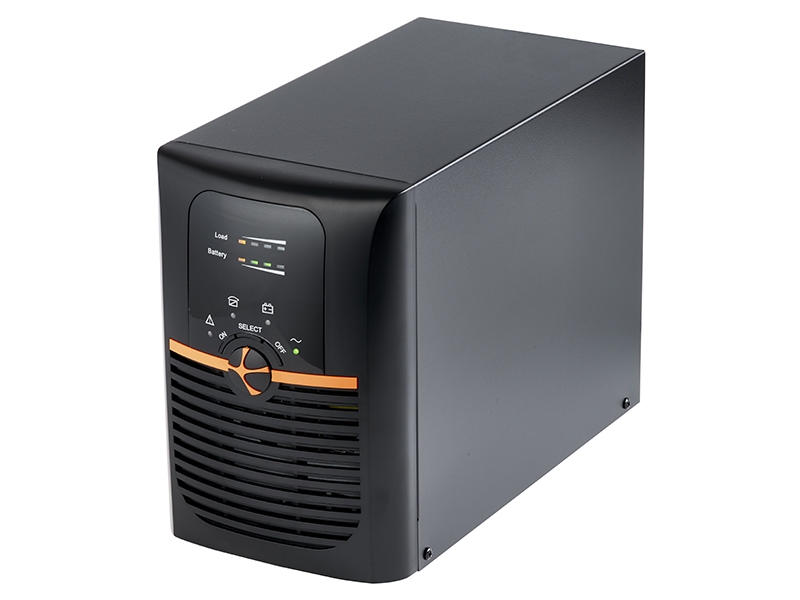

Newtech PRO3 ONE LED 1 kVA
Onduleur ONLINE UPS 1 KVA
Description
LOGIN
| Phase | Single phase and earth |
| Rated voltage | 200/208/220/230/240VAC |
| Low voltage transfer | 160Vac±5% @100%-80% load; 140Vac±5% @80%-70% load; 120Vac±5% @70%-60% load; 110Vac±5% @60%-0% load; ( <35℃) |
| Low voltage correction | 175Vac±5% @100%-80% load; 155Vac±5% @80%-70% load; 135Vac±5% @70%-60% load; 125Vac±5% @60%-0% load; ( <35℃) |
| High voltage transfer | 145 or 300Vac ±5% |
| High voltage correction | 140 or 290Vac ±5% |
| Frequency range | 40-70Hz |
| Power factor | 0.990 @100% load (Rated input Voltage) |
| Bypass voltage range | Bypass high voltage point can be adjusted from the LCD panel in the range of 230-264 on models with 200/208/220/230/240 VAC output. (Factory value 264Vac); Bypass low voltage point can be adjusted on the LCD panel in the range of 170-220 on models with 200/208/220/230/240 VAC output. (Factory value 170Vac) |
| Feeding from generator | Yes |
EXIT
| Output voltage | 200/208/220/230/240Vac |
| Power factor | 1 |
| Voltage regulation | ±1%(Bat. Mode) |
| Frequency | Network Mode47-53Hz or 57-63Hz; Battery Mode (50/60±0.1)Hz |
| Crest factor | 3/1 |
| Harmonic distortion (THDv) | ≤3% THD linear load; ≤6% THD nonlinear load |
| Waveform | Full sine wave |
| Transfer time | AC mode Battery mode 0 ms; Inverter bypass 4 ms (Typical) |
| Yield | >88%(AC mode); >83%(DC mode) |
BATTERY
| Battery Type | 12V7AH |
| Battery Type (External Battery) | Depends on the capacity of external batteries |
| Number of batteries | 2 |
| Number of batteries (External Battery) | 2 |
| Support period | Depends on battery capacity |
| Typical charging time | 4 hours 90% capacity (Typical) |
| Charging voltage | 27.4 VDC ±1% |
| Charging voltage (External Battery) | 27.4 VDC ±1% |
| Charging current | 1A |
| Charging current (External Battery) | 12A |
SYSTEM FEATURES
| Overload | Network Mode & Battery Mode, Ambient temperature<35℃ 105%~110% UPS transfers the load to bypass after 10 minutes. 110%~130% UPS transfers the load to bypass after 1 minute. >130% UPS transfers the load to bypass after 3 seconds; 35℃110% UPS transfers the load to bypass after 3 seconds. / Bypass Mode 8A(Input fuse) |
| Short circuit | Output is cut off |
| Excessive heat | Transfer to Network Mode Bypass; Battery Mode UPS shuts down |
| Low battery voltage | An alarm sounds and the UPS turns off |
ENVIRONMENTAL
| Operating temperature | 0℃～40℃ |
| Storage temperature | -25℃～55℃ |
| Humidity | 20-90% relative humidity @ 0- 40°C (non-condensing) |
| Working height | < 1500m |
| Noise level | < 50dBA from 1 Meter distance |
DIMENSIONS & WEIGHT
| DxWxH (mm) | 293x144x209 / 293x144x209 (External Battery Powered Model) |
| Weight (kg) | 8.9 / 4.2 (External Battery Powered Model) |
STANDARDS
| Security | IEC/EN62040-1,IEC/EN60950-1 |
| Electro magnetic compatibility | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
