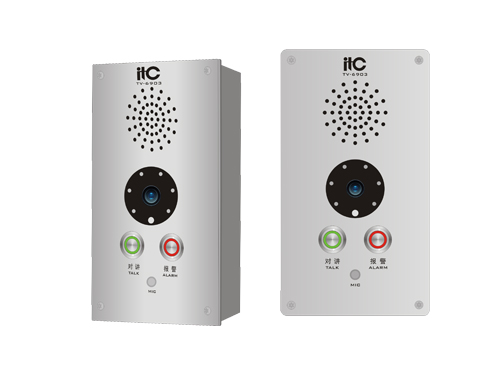

TV-6903
Specification:
|
Model |
TV-6903 |
|
Network interface |
Standard RJ45 interface |
|
Transmission rate |
10/100Mbps |
|
Communication protocol |
TCP/IP, UDP, IGMP, RTP |
|
Audio format |
ADPCM, PCM, MP3, WAV |
|
Audio protocol |
G.711 a/u, G.722, AAC |
|
Audio sampling rate |
16kHz ～ 48kHz |
|
Audio mode |
16-bit CD quality |
|
Built-in speaker impedance power |
4Ω, 3W |
|
MIC input sensitivity |
10mV |
|
Audio stream |
16kbps ～ 256kbps |
|
Audio interface |
Built-in MIC, Line out, Mic in |
|
THD |
<0.5% |
|
SNR |
>70dB |
|
Video format |
H.264 |
|
Video protocol |
SIP, RTMP, HTTP |
|
Video stream |
128kbps ～ 2Mbps |
|
Camera |
Built-in 1080P |
|
Relay |
3 channels, control the switch of electric control locks, cameras and other equipment |
|
GPIO interface |
3 channels, support the feedback of door magnetic status, camera status, etc. |
|
RS485 interface |
1 channel, connected to multi-color door lights |
|
Dimension (L× H × D ) |
98×175×58mm |
|
Power supply |
External DC power supply |
|
Power voltage |
DC 12V |
|
Working temperature |
-10 ℃～40 ℃ |
|
Working humidity |
10%～90% relative humidity, no condensation |
|
Weight |
1kg |
