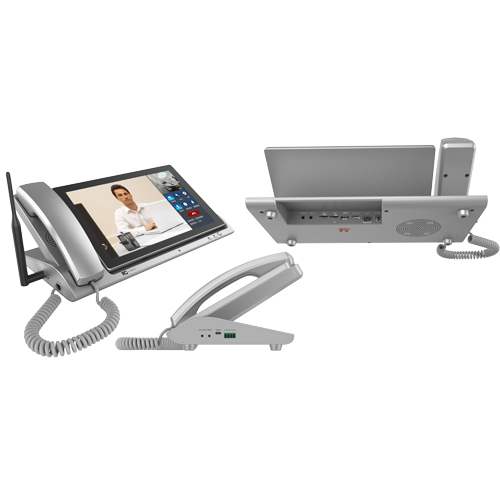

TV-6901B
Specification：
|
Model |
TV-6901B |
|
Operating system |
Android operating system |
|
Display screen |
11.6-inch HD display, capacitive multi-touch screen |
|
Display resolution |
1920*1080 |
|
Network port |
Standard RJ45 interface |
|
Transmission rate |
10M/100M/1000Mbps |
|
Communication protocol |
TCP/IP, UDP, IGMP, RTSP, RTMP, ONVIF |
|
Antenna interface |
Support 2.4G/5GWiFi, and Bluetooth |
|
Internet |
4G (optional) |
|
Audio format |
WAV, MP3 |
|
Output frequency |
20Hz~20KHz |
|
Audio protocol |
G.711a/u, G.722, AAC |
|
Audio sampling rate |
16K~48KHz |
|
Audio mode |
16-bit stereo |
|
Built-in speaker impedance power |
4Ω, 3W |
|
Audio stream |
16Kb~192Kb |
|
Audio port |
One 3.5mm input, one 3.5mm output |
|
MIC input sensitivity |
10mV |
|
THD |
0.1% |
|
SNR |
＞85dB |
|
Video port |
One HDMI output, support HDMI1.4 |
|
Video protocol |
SIP |
|
Video stream |
512Kb-4Mb |
|
Video camera |
Built-in, 5M |
|
Handle |
One external handle (handset call) |
|
Other interfaces |
1 USB3.0 interface, 1 RS485 interface, 1 SIM card, 1 TF card interface, 1 TYPEC interface, 1 relay interface |
|
Power supply mode |
External DC power supply |
|
Power supply |
DC12V2.5A |
|
Power consumption |
10W |
|
Working temperature |
-20℃~50℃ |
|
Working humidity |
10%～90% relative humidity, no condensation |
|
Weight |
3.4Kg |
|
Dimension |
370*200*145mm (L×W×H) |
|
Installation method |
Desktop |
