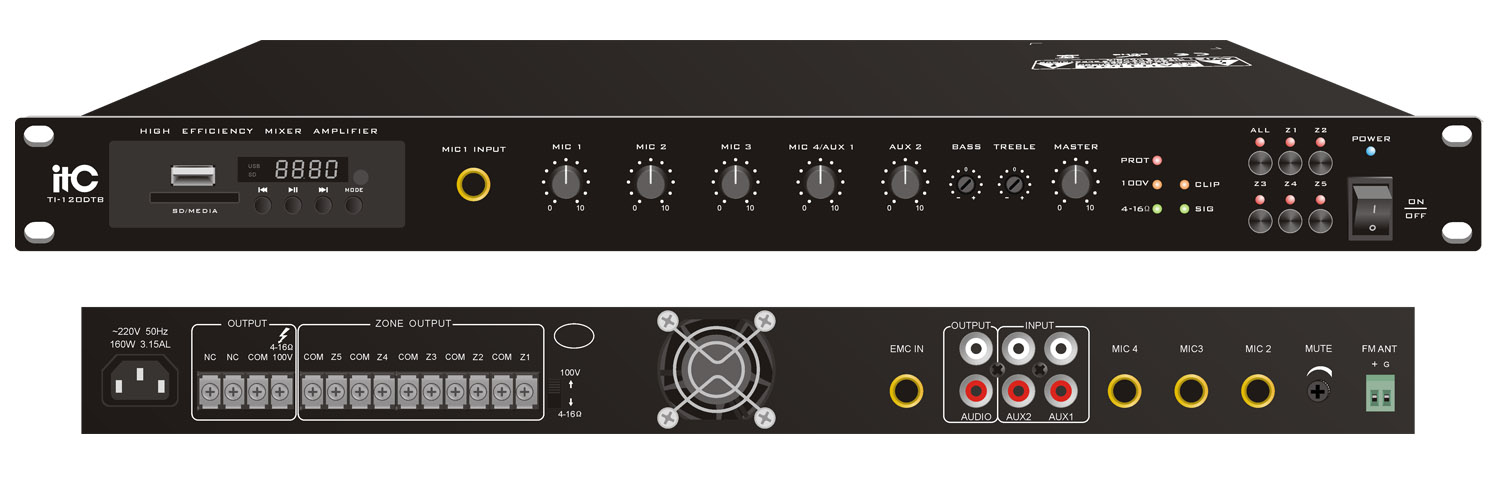

TI-120DTB

Model

TI-120DTB

TI-240DTB

TI-350DTB

TI-500DTB

Output

4-16Ω, 100V

Output Power

120W

240W

350W

500W

Input Sensitivity

& Impedance

MIC1, 2, 3, 4 Input:5mV/600Ω  Unbalanced 6.3 connector

AUX1, 2 Input: 350mV/10KΩ  Unbalanced RCA connector

EMC Input: 775mV/10KΩ  Unbalanced 6.3 connector

Output Sensitivity &

Soure Impedance

MIX OUT:1000mV/470Ω  Unbalanced RCA connector

Tone

Bass: ±10dB at 100Hz    Treble: ±10dB at 10KHz

Frequency Response

50~16KHz(+1dB,-3dB)

S/N Rate

MIC1, 2, 3: 66dB; AUX1, 2: 80dB

THD

Less than 0.5%(at 1KHz,1/3 Rated Power)

Mute Function

EMC>MIC1>MIC2, MIC3, AUX1, AUX2

Capacity

5 Zones

Channel Crosstalk

≥50dB

Attenuation

Heat Dissipation

The fan starts work when powered on. Winds flank in and out

from the back, can lead to strong cooling effect.

with infinitely variable speed.

Protection

Short circuit, overload and overheat

Power Supply

~220-240V /50Hz

Power Consumption

160W

300W

450W

630W

Dimension

484×260×44mm

Weight

3.7Kg

3.8Kg

4.0Kg

4.1Kg
