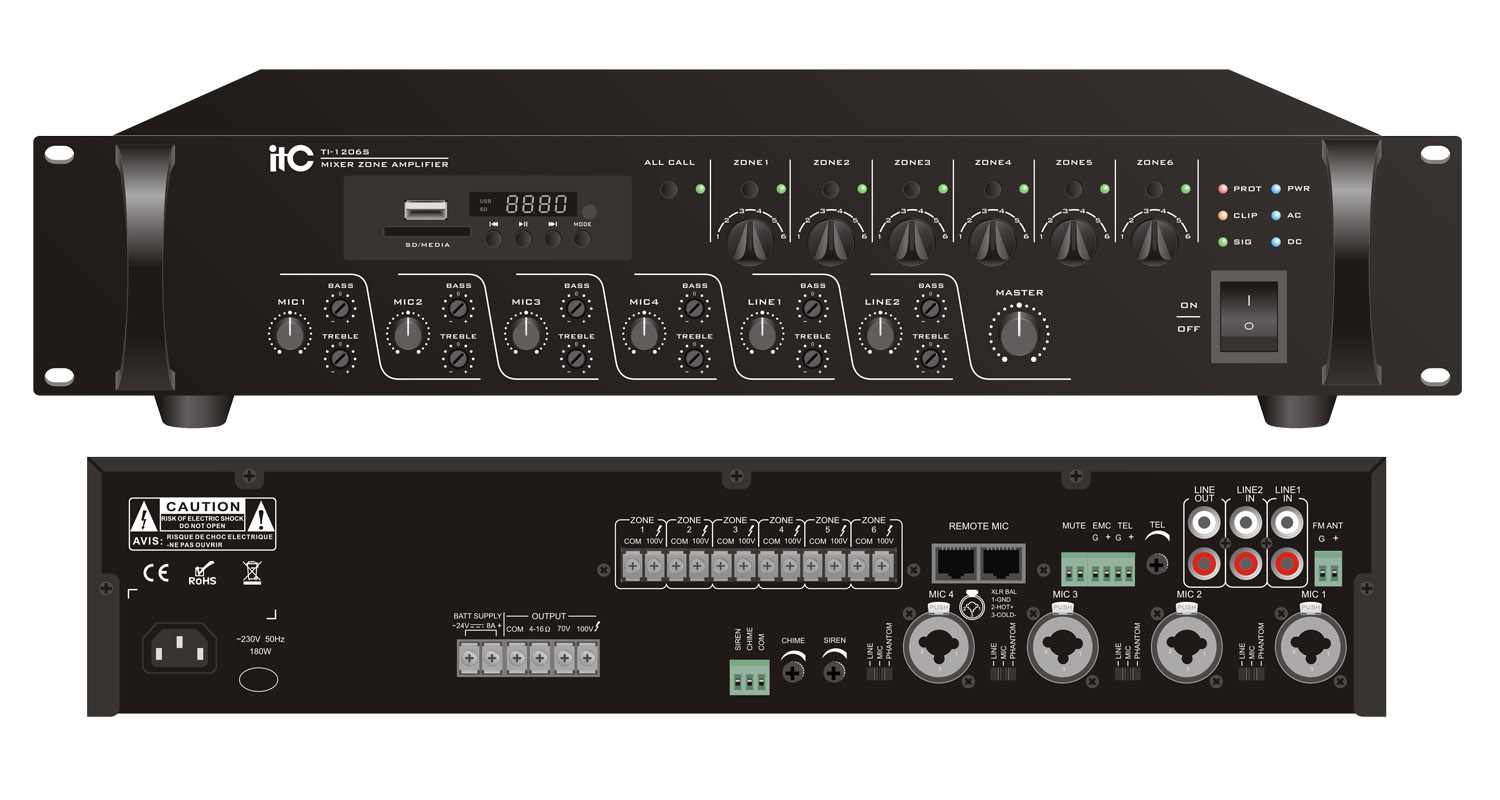

TI-1206S

Model

TI-1206S

TI-2406S

TI-3506S

TI-5006S

Amplifier Section

(Load 100V Output)

Rated Output Power (THD 1%)

120W(RMS)

240W

350W

500W

Speaker Zone 1~6 Output

25W MAX

50W MAX

70W MAX

85W MAX

Mic Input Section

(Mic 1~4 In@1KHz)

Input Sensitivity/Impedance

5mV 600Ω/350mV 10KΩ BAL

S/N Ratio

Better than 75dB

Frequency Response (±3dB)

80Hz~16KHz

Tone Control (Bass:100Hz, Treble:10KHz)

±10dB

Phantom Power

+ 48V

Line Input Section

(Mic 1~2 In@1KHz)

Input Sensitivity/Impedance

350mV/47KΩ

S/N

Better than 80dB

Frequency Response (±3dB)

80Hz~16KHz

Tone Control (Bass: 100Hz,Treble:10KHz)

±10dB

Tel Audio Input

Input Sensitivity/Impedance

775mV/10KΩ

S/N

Better than 75dB

Frequency Response (±3dB)

50Hz~16KHz

EMC Audio Input

Input Sensitivity/Impedance

775mV/10KΩ

S/N

Better than 75dB

Frequency Response (±3dB)

80Hz~16KHz

Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)

1V/600Ω

Remote MIC Sensitivity/Impedance

775mV/10KΩ

THD

≤ 0.1% at 1KHz, 1/3 rated power

Power Supply

~110V/60Hz or ~230V/50Hz & DC 24V

Power Consumption

210W

380W

530W

750W

Weight

6.7Kg

7.2Kg

8.6Kg

9.0Kg

Dimensions

484x310x88 mm
