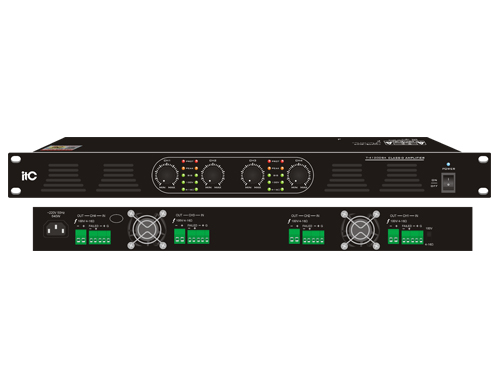

T-4240DSA
4-Channel Power Amplifier (Phone Jack MIC Input)
Description
Specifications:
|
Model |
T-4060DSA |
T-412DSA |
T-4240DSA |
|
Rated Power |
4×60W |
4×120W |
4×240W |
|
Rated Output |
100V/4-16Ω |
||
|
Input Sensitivity (impedance) |
±385mV/20KΩ, Balanced input |
||
|
Overload Source Electromotive Force |
>11dB |
||
|
Frequency Response |
80Hz~16KHz (+1, -3dB) |
||
|
SNR |
≥85dB |
||
|
THD |
≤0.1% at 1KHz, 1/3 rated power |
||
|
Control |
Remote power control and fault indication |
||
|
Indicator Light |
Signal, peak, protection, power supply |
||
|
Protection |
High temperature, overload, short circuit |
||
|
Cooling |
Forced fan cooling |
||
|
Power Supply |
~240V 50/60Hz |
||
|
Power Consumption |
380W |
750W |
1250W |
|
Dimension |
484×315×44mm |
||
|
Weight |
5.0kg |
5.1Kg |
5.7Kg
|
