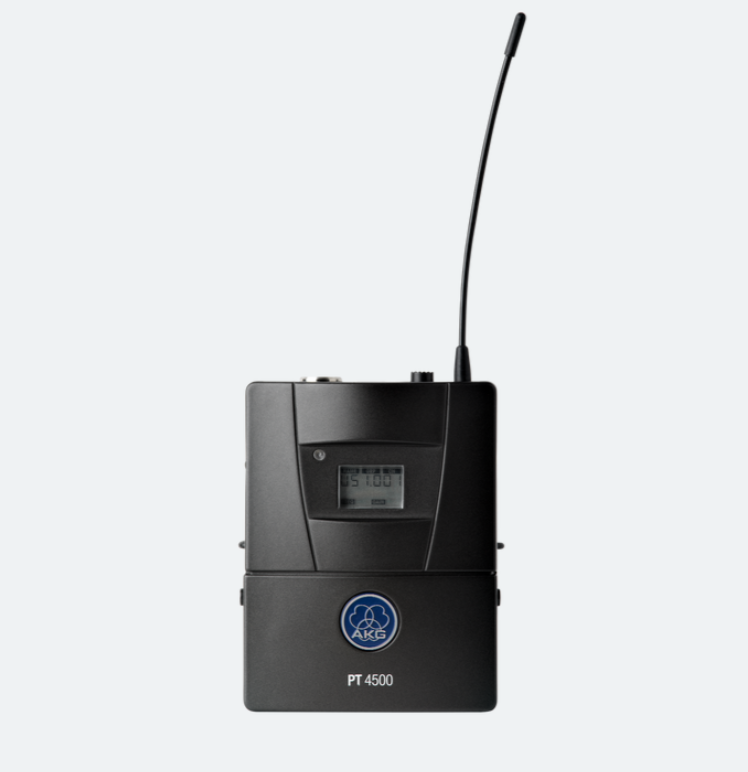

PT4500
Reference wireless body-pack transmitter
Description
- Supreme audio quality
- Up to 50mW transmission power
- Up to 15 hours of battery life
Couleur: Black
Caractéristiques Générales
- Audio frequency bandwidth
- 35 - 20000 Hz
- Signal to Noise
- 120 dB-A
- THD at 1 kHz
- 0.3 Prozent
- Operating temperature range
- -10 to 55 Celsius
- Peak deviation
- 48 kHz
- Nominal deviation
- 20 kHz
- Radio Output Power (min/max)
- 10 to 50 mW
- Transmitter Synchronization
- Manual
- Mute Switch Type
- Jack Mono (1/4")
- Mute Switch Gender
- Female
- Switching bandwidth
- 30 MHz
- Recommended simultaneous channels
- 50
- Number of selectable frequencies
- 1220 (selectable in 25kHz steps)
- Frequency Selection
- Selectable frequency in 25kHz steps
- Radio range (Line of sight)
- 100m (depending on antenna system)
- Switchable RF power
- no
- Modulation
- FM (Frequency Modulation)
- Encryption
- No encryption
- Diversity
- True Diversity
- Pilot Tone
- yes
Dimensions
- Length
- 25 mm
- Height
- 91 mm
- Width
- 70 mm
Design
- Body
- metal
- Finish
- black
Audio Input
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
- Maximum audio level
- 12 dB
Batterie
- Battery type
- AKG BP 4000
- Compatible Charging System
- CU4000
- Number of batteries
- 1
- Operating time
- 12 h
Battery 2
- Battery type
- HR 6 AA (NiHM) rechargeable
- Compatible Charging System
- CU4000
- Number of batteries
- 2
- Operating time
- 15 h
Battery 1
- Battery type
- LR6 AA alkaline
- Number of batteries
- 2
- Operating time
- 15 h
