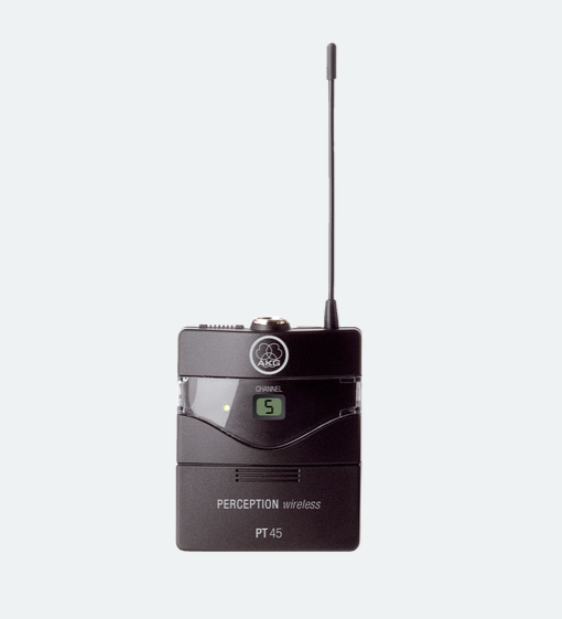

PT45
High-performance wireless body-pack transmitter
Description
- Up to eight hours of operation from a single AA-size battery
- Professional three-pin mini XLR connector
- Gain control on transmitter
Couleur: Black
Caractéristiques Générales
- Audio frequency bandwidth
- 40 - 20000 Hz
- Signal to Noise
- 105 dB-A
- THD at 1 kHz
- 0.8 Prozent
- Operating temperature range
- -10 to 55 Celsius
- Peak deviation
- 45 kHz
- Nominal deviation
- 15 kHz
- Transmitter Synchronization
- Manual
- Switching bandwidth
- 30 MHz
- Recommended simultaneous channels
- 5
- Number of selectable frequencies
- 8 Fixed frequencies
- Frequency Selection
- Fixed frequency
- Radio range (Line of sight)
- 30m
- Switchable RF power
- no
- Modulation
- FM (Frequency Modulation)
- Encryption
- No encryption
- Pilot Tone
- no
Dimensions
- Length
- 60 mm
- Height
- 75.5 mm
- Width
- 30 mm
Design
- Body
- plastic
- Finish
- black
Audio Input
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
- Maximum audio level
- 12 dB
- Rated Impedance
- 1 Ohms
Batterie
- Number of batteries
- 1
- Operating time
- 14 h
Battery 2
- Number of batteries
- 1
- Operating time
- 8 h
Battery 1
- Battery type
- LR6 AA alkaline Battery
- Number of batteries
- 1
- Operating time
- 8 h
